Select the model you would like to see by clicking one of the following links, or scroll through the page to see all of the parts images.
30 lb Class D Sodium Chloride Powder Extinguisher Models
570, B570
30 lb Class D Copper Powder Extinguisher Models
571, B571

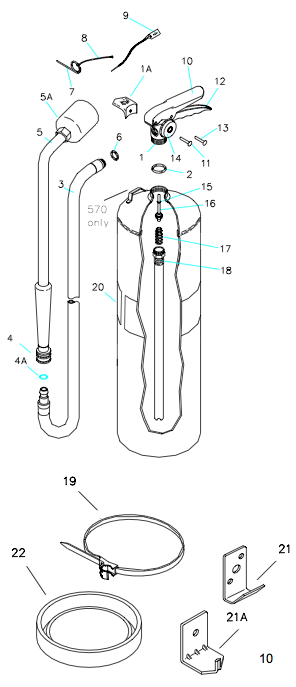

30 lb Class D Sodium Chloride Powder Extinguisher Models
570, B570
| Fig No | Description | Part No |
| 1 | Valve Assembly | 11952 |
| 1A | Hanger Loop & Screw – B570 | 17144 |
| 2 | Collar O-Ring | 05240 |
| 3 | Hose Assembly w/½” Male Quick Connect | 10744 |
| 4 | ½” Female Quick Connect | 10802 |
| 4A | O-Ring for Quick Connect | 09073 |
| 5 | Extension Applicator | 10800 |
| 5A | Horn Black Cl-D | 14595 |
| 6 | Hose Gasket (O-Ring) | 06978 |
| 7 | Ring Pin – Stainless Steel | 00160 |
| 8 | Chain (Nylon) for Ring Pin | 00532 |
| 9 | Lock Wire Seal (Yellow) | 01387 |
| 10 | Lever & Rivet | 07762 |
| 11 | Rivet Only for Lever | 01563 |
| 12 | Handle & Rivets | 09020 |
| 13 | Rivets Only for Handle (2 Required) | 01564 |
| 14 | Gauge – 195 psi | 03965 |
| 15 | Valve Stem O-Ring | 05243 |
| 16 | Valve Stem Assembly | 06093 |
| 17 | Spring | 17139 |
| 18 | Downtube/Retainer Assembly – 570 | 17215 |
| Downtube/Retainer Assembly – B570 | 17214 | |
| 19 | Strap & Hose Clip Assembly (Black Plastic) 3/8″ (2 Required) | 16904 |
| 20 | Label (Fire Ratings) | 08281 |
| 21 | Wall Hanger Bracket – 570 | 01007 |
| 21A | Wall Hanger Bracket – B570 | 00577 |
| 22 | Protective Ring for Bottom of Cylinder – 570 | 12383 |
| Protective Ring for Bottom of Cylinder – B570 | 12952 | |
| 23 | Hydrotest Adapter | 03038 |
| 24 | Fill Adapter, Hansen Quick Connect Type 5/8″ UNF Thread | 02141 |
All valve assemblies include new valve body, gauge, lever and handle.
30 lb Class D Copper Powder Models
571, B571
| Fig No | Description | Part No |
| 1 | Valve Assembly | 11952 |
| 1A | Hanger Loop & Screw B571 | 17144 |
| 2 | Collar O-Ring | 05240 |
| 3 | Hose Assembly w/½” Male Quick Connect | 10744 |
| 4 | ½” Female Quick Connect | 10802 |
| 4A | O-Ring for Quick Connect | 09073 |
| 5 | Extension Applicator | 10800 |
| 5A | Horn Black CI-D | 14595 |
| 6 | Hose Gasket (O-Ring) | 06978 |
| 7 | Ring Pin – Stainless Steel | 00160 |
| 8 | Chain (Nylon) for Ring Pin | 00532 |
| 9 | Lock Wire Seal (Yellow) | 01387 |
| 10 | Lever & Rivet | 07762 |
| 11 | Rivet Only for Lever | 01563 |
| 12 | Handle & Rivets | 09020 |
| 13 | Rivets Only for Handle (2 Required) | 01564 |
| 14 | Gauge – 195 psi | 03965 |
| 15 | Valve Stem O-Ring | 05243 |
| 16 | Valve Stem Assembly | 06093 |
| 17 | Spring | 17139 |
| 18 | Downtube/Retainer Assembly – 571 | 17215 |
| Downtube/Retainer Assembly – B571 | 17214 | |
| 19 | Strap & Hose Clip Assembly (Black Plastic) 3/8″ (2 Required) | 16904 |
| 20 | Label (Fire Ratings) | 10853 |
| 21 | Wall Hanger Bracket – 571 | 01007 |
| 21A | Wall Hanger Bracket – B571 | 00577 |
| 22 | Protective Ring for Bottom of Cylinder – 571 | 12383 |
| Protective Ring for Bottom of Cylinder – B571 | 12952 | |
| 23 | Hydrotest Adapter | 03038 |
| 24 | Fill Adapter, Hansen Quick Connect Type 5/8″ UNF Thread | 02141 |
All valve assemblies include new valve body, gauge, lever and handle.
