Wheeled Halon 1211 Extinguisher Parts

Amerex Products

Select the model you would like to see by clicking one of the following links, or scroll through the page to see all of the parts images.

150 lb Wheeled Stored Pressure Halon 1211 Extinguisher

50 lb Wheeled Stored Pressure Halon 1211 Extinguisher

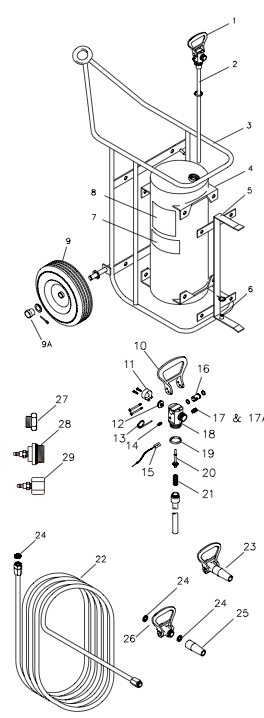

150 lb Wheeled Stored Pressure Halon 1211 Extinguisher

Model 600

150lbWheeledStoredPressureHalon1211ExtinguisherModel600


Fig No Description Part No
1 Valve Assembly w/Downtube 03499
2 Downtube/Retainer Assembly 04938
3 Carriage Assembly w/o Wheels 10523
4 Cylinder w/Mounting Brackets 03506
5 Hose Support Assembly w/Mounting Hardware 06061
6 Nozzle Mount w/Hardware 06130
7 Nameplate (Mylar Label) Non UL 03624
8 Pictogram 07481
9 Wheel Assembly, 16″ w/Hubcap, Washer & Retaining Pin Pneumatic, Green 06062
Wheel Assembly, 16″ w/Hubcap, Washer & Retaining Pin Semi-Pneumatic, Black 07778
9A Hubcap 04945
10 Valve Lever w/Screws 06059
11 Gauge Guard Assembly 03562
12 200 psi Gauge 03523
13 Ring Pin, Stainless Steel w/Wire 06100
14 Pressure Valve & Cap Assembly 00155
15 Lock Wire Seal (Yellow) 01387
16 Cam Assembly w/O-Rings 06060
17 Safety Disc Assembly 03787
17A Vinyl Protector Cap 13956
18 Valve Body 03678
19 Collar O-Ring 05239
20 Valve Stem Assembly 05067
21 Spring 03556
22 Hose Assembly, 50 ft 03501
23 Nozzle Assembly (Ball Valve & Tip) 05295
24 Gasket, Hose/Nozzle 03877
25 Nozzle Tip (.375) 06355
26 Ball Valve Assembly 06279
27 Hydrotest Adapter (Male Plug) Use w/09857 to Test 50 ft Hose Assembly 05723
28 Hydrotest Adapter (Cylinder) 05152
29 Recharge Adapter 09857
Owners Service Manuel 05606
Visilox Lubricant (5 oz Tube) 06247
Plug, ¾ NPT Stainless Steel Socket 06370

Top

50 lb Wheeled Stored Pressure Halon 1211 Extinguisher

Model 695



Fig No Description Part No
1 Valve Assembly w/Downtube 06200
2 Downtube Assembly  50 Dry Chemical 06072
3 Carriage Assembly w/o Wheels 06624
4 Pressure Valve & Cap Assembly 00155
5 Hose Support Assembly w/Hose Clip, Hardware & Nozzle Mount 06379
6 Hose Clip w/Mounting Hardware 06380
7 Nozzle Mount w/Hardware 06376
8 Cylinder w/Mounting Brackets 06313
8A Pictogram 07480
9 Wheel Assembly, 12½” w/Hubcap, Washer & Retaining Pin 06381
10 Hubcap 04945
11 Valve Lever w/Dowel Pin and Knobs 06373
12 Valve Body 06153
13 200 psi Gauge 03523
14 Ring Pin, Stainless Steel w/Wire 06100
15 Lock Wire Seal (Yellow) 01387
16 Collar O-Ring 05240
17 Valve Stem Assembly 06022
18 Spring 00383
19 Gasket, Hose 07247
19A Gasket, Ball Valve 06056
20 Hose Assembly, 25″ w/Gasket 06015
21 Nozzle Assembly (Ball Valve & Tip) 06395
22 Ball Valve Assembly 06031
22A Gasket, Nozzle 03877
23 Nozzle Tip (.265) 06032
24 Hydrotest Adapter (Cylinder) 03038
25 Recharge Adapter 06160
26 Hydrotest Adapter (Male Plug), Use w/06160 to Test 25″ Hose Assembly 06157
 Visilox Lubricant (5 oz Tube) 06247
 Owners Service Manual 05606

Top
