250 lb Wheeled/Stationary Stored Pressure High Performance Dry Chemical Extinguisher
Wheeled Models | 573 | ABC |
574 | Regular |
575 | Purple K |
Stationary Models | 596 | ABC |
597 | Regular |
598 | Purple K |

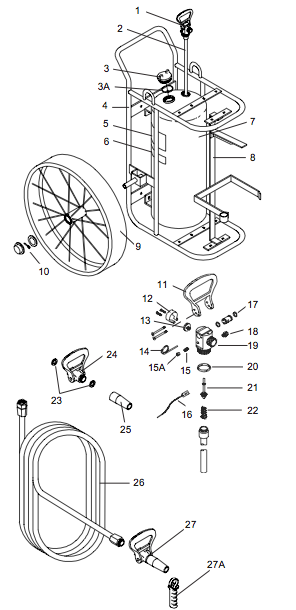

Fig No | Description | Part No |
1 | Valve Assembly Complete w/Downtube | 8715 |
2 | Downtube/Retainer Assembly | 9856 |
3 | Fill Cap, Brass, Chrome Plated | 9300 |
3A | Gasket, Fill Cap | 8392 |
4 | Carriage Assembly w/o Wheels | 8764 |
5 | Nameplate (Mylar Label) Non UL – 573 | 9542 |
Nameplate (Mylar Label) Non UL – 596 | 10756 |
Nameplate (Mylar Label) Non UL – 574 | 9548 |
Nameplate (Mylar Label) Non UL – 597 | 10757 |
Nameplate (Mylar Label) Non UL – 575 | 8728 |
Nameplate (Mylar Label) Non UL – 598 | 10581 |
6 | Pictogram – 573, 596 | 7481 |
Pictogram – 574, 575, 597, 598 | 7483 |
7 | Cylinder w/Mounting Brackets | 8765 |
8 | Hose Support Assembly w/Mounting Hardware | 9553 |
9 | Wheel Assembly – 36″ x 6″ – Galvanized (Red) | 12180 |
— | Wheel Assembly – 36″ x 6″ – CR (Red) w/Rubber Tread | 7607 |
10 | Hub Cap (Metal) w/Washer & Cotter Pin | 7389 |
11 | Valve Lever w/Screws | 6059 |
12 | Gauge Guard Assembly | 3562 |
13 | Gauge – 350 psi | 8714 |
14 | Ring Pin, Stainless Steel w/Wire | 6100 |
15 | Pressure (“Bleeder”) Valve | 7309 |
15A | Cap for Pressure Valve | 7310 |
16 | Lock Wire Seal (Yellow) | 1387 |
17 | Cam Assembly w/O-Rings | 6060 |
18 | Safety Disc Assembly | 8573 |
19 | Valve Body | 3678 |
20 | Collar O-Ring | 5239 |
21 | Valve Stem Assembly | 5067 |
22 | Spring | 3556 |
23 | Gasket – Hose/Nozzle | 3877 |
24 | Ball Valve Assembly | 6279 |
25 | Nozzle Tip – 573, 574, 596, 597, (.625) | 9399 |
Nozzle Tip – 575, 598 (.531) | 8260 |
26 | Hose Assembly – 1″ x 50 ft | 6814 |
27 | Nozzle Assembly – Ball Valve & Tip – 573, 574, 596, 597 | 9543 |
Nozzle Assembly – Ball Valve & Tip – 575, 598 | 7385 |
27A | Pistol Grip | 9711 |
28 | Fill Adapter | 9857 |
29 | Hydrotest Adapter (Cylinder) | 5152 |
Replacement valve assemblies include new valve body, gauge, gauge guard, safety disc assembly, cam, pressure valve & cap, lever, valve stem assembly, and spring and downtube/retainer assembly.
