K-Guard Fire Extinguisher Parts

MODELS K01-1, K01-2

K-GuardFireExtinguisherPartsK01-1K01-2

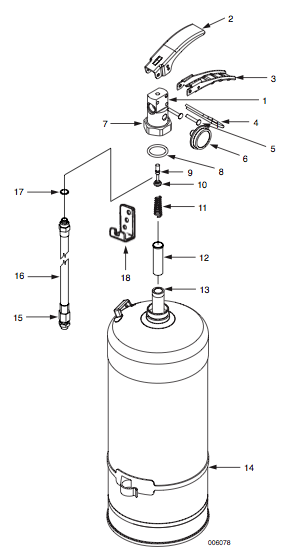

Fig No
DescriptionPart No
1Valve Body430271
2Lever430924
3Handle430273
4Ring Pin430115
5Rivet430250
6Gauge429536
7Collar Nut430274
8Collar O-Ring56909
9Valve Stem O-Ring429159
10Valve Stem429099
11Spring430004
12Fill Tube429541
13Pick-Up Tube Assembly430851
14Belly Band427995
15Nozzle Tip426074
16Hose and Nozzle Assembly430055
17Hose O-Ring429544
18Wall Hanger430056
—Heavy Duty Bracket (Not Shown)422737
—Visual Inspection Seal (Not Shown)25940
—Warning Placard, English/Spanish (Not Shown)426021
—Warning Placard English/Can. French (Not Shown)426034
—Adaptor Assembly, Recharge430057
—Valve Assembly430270
