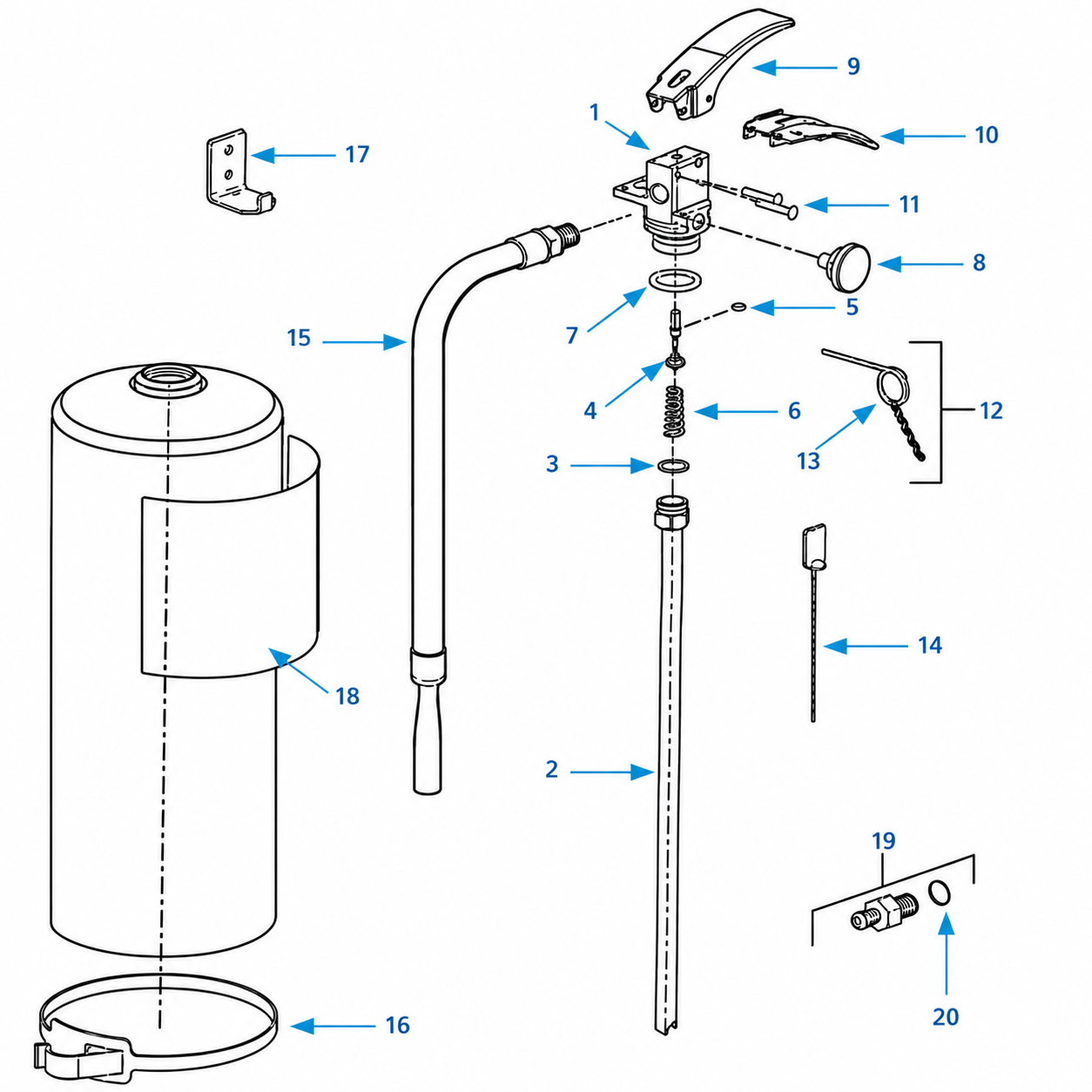

View the parts for Sentry Dry Chemical Extinguishers. Select the model you would like to see by clicking one of the following links, or scroll through the page to see all of the parts images.
Fig No | Description | Part No |
| — | Valve Assembly, 10 lb Models | 429088 |
| — | Valve Assembly, 20 lb Models | 429089 |
| 1 | Valve Body, Plated | 428434 |
| 2 | Tube, Pick-Up, 10 lb Models | 428797 |
| 2 | Tube, Pick-Up, 20 lb Models | 428799 |
| 3 | O-Ring (Pick-up Tube) | 76076 |
| 4 | Valve Stem Assembly (Brass) | 428432 |
| 4 | Valve Stem with O-Ring Assembly | 428432 |
| 5 | O-Ring | 11873 |
| 6 | Spring | 415565 |
| 7 | O-Ring | 428327 |
| 8 | Gauge, Pressure | 56776 |
| 9 | Lever, Operating | 428428 |
| 10 | Handle, Carrying | 428429 |
| 11 | Rivet | 428130 |
| 12 | Ring Pin and Chain | 16234 |
| 13 | Pull Pin (Ring Pin) | 16235 |
| 14 | Seal, Visual Inspection | 25940 |
| 15 | Hose & Nozzle Assembly, A10I/C10I | 428733 |
| 15 | Hose & Nozzle Assembly, PK10I | 428735 |
| 15 | Hose & Nozzle Assembly, A20I | 428737 |
| 15 | Hose & Nozzle Assembly, PK20I | 428739 |
| 16 | Hose Retainer | 427995 |
| 17 | Hanger Hook | 428223 |
| 18 | Nameplate, Oper & Maint w/o UL | webpage |
| 19 | Adaptor Assembly, Recharge | 429642 |
| 20 | O-Ring | 57744 |
SY-1034-B, SY-2014-B, SY-2024-B, SY-2034-B
Fig No | Description | Part No |
| 1 | Valve Assembly, 6lb Models | 416984 |
| 1 | Valve Assembly, 10 lb Models | 416985 |
| 1 | Valve Assembly, 20 lb Models | 416986 |
| 2 | Valve Body, Machined | 416980 |
| 3 | Tube, Pick-Up | N/A |
| 4 | Valve Stem Assembly (Brass) | 416033 |
| 5 | O-Ring | 11873 |
| 6 | Spring | 29256 |
| 7 | Quad Ring | 16222 |
| 8 | Gauge, Pressure | 56776 |
| 9 | Lever, Operating | N/A |
| 10 | Handle, Carrying | 415025 |
| 11 | Rivet | N/A |
| 12 | Ring Pin and Chain | 16234 |
| 13 | Pull Pin (Ring Pin) | 16235 |
| 14 | Seal, Visual Inspection | 25940 |
| 15 | Hose & Nozzle Assembly, SY-0614-B | 417013 |
| 15 | Hose & Nozzle Assembly, SY-1014-B, SY-1034-B | 417015 |
| 15 | Hose & Nozzle Assembly, SY-1024-B | 417016 |
| 15 | Hose & Nozzle Assembly, SY-2034-B | 417017 |
| 15 | Hose & Nozzle Assembly, SY-2024-B | 417018 |
| 15 | Hose & Nozzle Assembly, SY-2014-B | 417738 |
| 16 | Hose Clip | 32422 |
| 17 | Locking Cable, 6 & 10 lb Models | 30636 |
| 17 | Locking Cable, 20 lb Models | 30935 |
| 18 | Hanger Hook, 10 lb Models | 76205 |
| 19 | Nameplate, Oper & Maint w/o UL/ULC | webpage |
| 20 | Adaptor Assembly, Recharge | 16246 |
| 21 | O-Ring | 6263 |
| — | Inspection Record Tag (Not Shown) | 2364 |
