Red Line Fire Extinguisher Parts

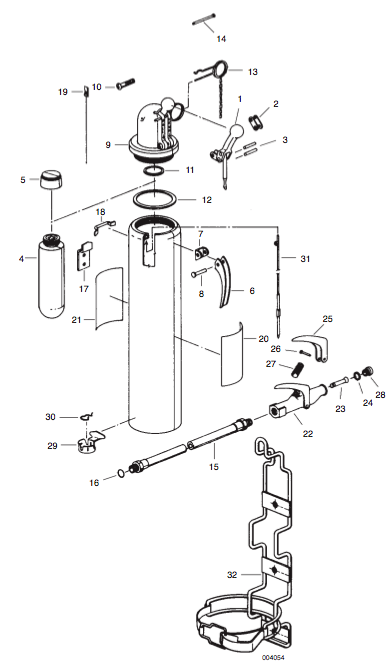

MODEL 5
MODELS 10-C, LR-10-C, A-10-C, K-10-C; 20-D, LR-20-D, LT-20-D, A-20-D, LT-A-20-D, K-20-D,LT-K-20-D; 30-D, LR-30-D, LT-30-D, A-30-D, LT-A-30-D, K-30-D, LT-K-30-D
MODELS 10-E AND 10-G
MODELS 20-E AND 20-G

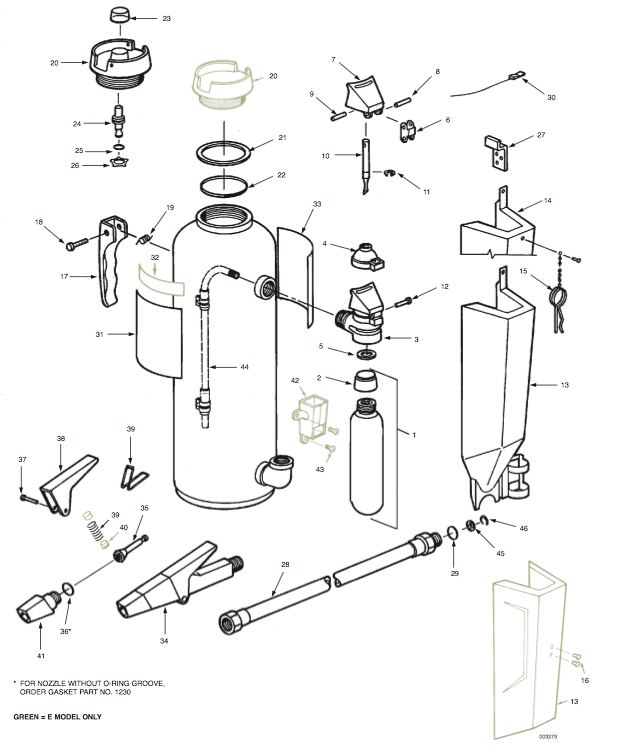

MODELS 30-E AND 30-G

MODEL 5


Fig
No
Description Part No
1 Bell Lever without Puncture Pin 2330
2 Link, Ball Lever Assembly 1068
3 Rivets, Lever 1507
4 Cartridge Assembly w/Cap, CO2 4523
4 Cartridge Assembly w/Cap, Nitrogen, LT-5-R 6979
5 Cartridge Shipping Cap, LH 77250
5 Cartridge Shipping Cap, LT, RH 77251
6 Carrying Handle 6169
7 Carrying Handle Lug N/A
8 Carrying Handle Rivet 1265
9 Dome and Fill Cap Assembly, Standard 2672
9 Dome and Fill Cap Assembly, LT 2759
10 Cap Screw 11318
11 Gasket, Cartridge Receiver 181
12 Gasket, Fill Cap 615
13 Ring Pin Assembly 2332
14 Rivet, Dome to Link 1506
15 Hose Assembly, 3/8 in Coupling Both Ends, Pre-1967, Standard n/a
15 Hose Assembly, 3/8 & 9/16 in Couplings, Post-1967, Standard 15799
15 Hose Assembly, 3/8 in Coupling Both Ends, Pre-1967, LT n/a
15 Hose Assembly, 3/8 & 9/16 in Couplings, Post-1967, LT 15799
16 O-Ring 6263
17 Hanger Hook 2128
18 Hanger Attachment n/a
19 Inspection Seal, Visual 15999
20 Nameplate, Operating, Replacement 69563, 69564 (A-5)
21 Nameplate, Maintenance, Replacement w/o UL 16440
22 Nozzle Assembly, Std. & LT, PLUS-FIFTY 6673
22 Nozzle Assembly, Std., FORAY 17519
22 Nozzle Assembly, Std., Purple-K 32130
22 Nozzle Assembly, LT, FORAY 15419
22 Nozzle Assembly, LT, Purple-K 10046
23 Plunger 4283
24 Gasket, Nozzle Tip 1662
25 Handle, Nozzle, Standard 2343
26 Rivet, Nozzle Handle 1048
27 Spring, Nozzle Handle 1666
28 Tip, Nozzle, Std, PLUS-FIFTY 6612
28 Tip, Nozzle, Std, FORAY 69504
28 Tip, Nozzle, Std Purple-K, LT FORAY 4676
28 Tip, Nozzle, LT Purple-K 10047
29 Nozzle Holder n/a
30 Spring, Nozzle Holder 7564
311 Gas Tube Assembly 10907
32 Bracket 7077

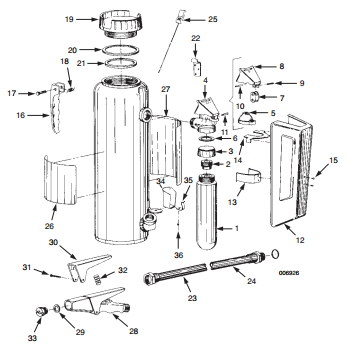

MODELS 10-C, LR-10-C, A-10-C, K-10-C; 20-D, LR-20-D, LT-20-D, A-20-D, LT-A-20-D, K-20-D, LT-K-20-D; 30-D, LR-30-D,

LT-30-D, A-30-D, LT-A-30-D, K-30-D, LT-K-30-D



redlinefireestinguisherparts18differentmodels

Fig
No
Description
Part No
1 Cartridge Assembly 10lb CO2 4616
1 Cartridge Assembly 20lb CO2 4614
1 Cartridge Assembly 30lb CO2 4615
1 Cartridge Assembly 20lb Nitrogen, LT 7032
1 Cartridge Assembly 30lb Nitrogen, LT 5373
2 Cartridge Seal Assembly, CO2 N/A
2 Cartridge Seal Assembly, Nitrogen LT N/A
3 Cartridge Shipping Cap 77250
3 Cartridge Shipping Cap, LT 77251
4 Cartridge Receiver Assembly, Std 3626
4 Cartridge Receiver Assembly, LT 1356
5 Cap, Rubber 1057
6 Gasket, Cartridge Receiver 181
7 Link, Cartridge Receiver 1068
8 Puncture Lever 3628
9 Spring Pin, Link to Puncture Lever 4108
10 Spring Pin, Puncture Lever & Puncture Pin 4109
11 Rivet, Link to Cartridge Receiver 6286
12 Cartridge Guard Assembly, Standard 10lb Models 3652
12 Cartridge Guard Assembly, Standard 20lb Models 6302
12 Cartridge Guard Assembly, Standard 30lb Models 6287
12 Cartridge Guard Assembly, LT-20lb Models 6967
12 Cartridge Guard Assembly, LT-30lb Models 6971
13 Clip, Cartridge Guard, 10lb Models 3654
13 Clip, Cartridge Guard, 20-30lb Models 6291
14 Guide, Cartridge Guard 10lb Models 3655
15 Rivet, Cartridge Guard, 20-30lb Models 6579
16 Carrying Handle 6169
17 Carrying Handle Rivet 1265
18 Carrying Handle Spring 2902
19 Fill Cap with Gasket & Quad Ring 17999
20 Gasket, Fill Cap 6190
21 Quad Ring, Fill Cap 6273
22 Hanger Hook 3651
23 Hose Assy w/Couplings, Std. 10lb Models 6274
Fig
No
Description Part No
23 Hose Assy w/Couplings, Std. 20lb Models 7091
23 Hose Assy w/Couplings, Std. 30lb Models 7083
23 Hose Assy w/Couplings, LT-20lb Models 7091
23 Hose Assy w/Couplings, LT-30lb Models 7083
24 O-Ring, 10-20lb Models 6263
24 O-Ring, 30lb Models 6324
25 Inspection Seal 15999
26 Nameplate, Operating, Replacement webpage
27 Nameplate, Maintenance, Replacement w/o UL
28 Nozzle Assembly, 10-C 6277
28 Nozzle Assembly, A-10-C, LR-10-C 6708
28 Nozzle Assembly, K-10-D 10041
28 Nozzle Assembly, 20-D 6307
28 Nozzle Assembly, A-20-D 13739
28 Nozzle Assembly, K-20-D 13746
28 Nozzle Assembly, 30-D 6294
28 Nozzle Assembly, A-30-D, K-30-D, LR-20-D 13738
28 Nozzle Assembly, LR-30-D 6714
29 Gasket, Nozzle Assembly 1230
30 Handle, Nozzle Assembly 6266
31 Rivet, Nozzle Handle 3621
32 Spring, Nozzle Handle 6308
33 Tip, Nozzle Assembly, 10-C 13740
33 Tip, Nozzle Assembly, A-10-C, LR-10-C 6709
33 Tip, Nozzle Assembly, K-10-C 10042
33 Tip, Nozzle Assembly, 20-D 6353
33 Tip, Nozzle Assembly, A-20-D 13737
33 Tip, Nozzle Assembly, K-20-D 13745
33 Tip, Nozzle Assembly, 30-D 13748
33 Tip, Nozzle Assembly A-30-D, K-30-D, LR-20-D 13736
33 Tip, Nozzle Assembly, LT-20lb Models 6713
33 Tip, Nozzle Assembly, LT-30lb Models 6715
33 Tip, Nozzle Assembly, LR-30-D 13756
34 Nozzle Holder 6371
35 Nozzle Holder Clip 6370
36 Nozzle Holder Rivet 6368




MODELS 10-E AND 10-G




RedLineFireExtinguisherParts10-E10-G
Fig
No
Description Part_No
1 Cartridge w/Cap CO2, 10-L (E/G) 4616
1 Cartridge w/Cap, N2, LT-10-R (E/G) 13193
2 Cartridge Shipping Cap, LH (E/G) 77250
2 Cartridge Shipping Cap, RH (E/G) 77251
3 Cartridge Receiver, RH (E/G) 1356
3 Cartridge Receiver, LH (E/G) 3626
3 Cartridge Receiver, CR, LH (E/G) 17913
4 Cap, Rubber (E/G) 1057
5 Gasket, Cartridge Receiver (E/G) 181
6 Link, Cartridge Receiver (E/G) 1068
7 Puncture Lever (E/G) 3628
8 Spring Pin, Link to Puncture Lever (E/G) 4108
9 Spring Pin, Puncture Lever to Puncture Pin (E/G) 4109
10 Puncture Pin (E/G) 25305
11 Retaining Ring (E/G) 1903
12 Rivet, Link to Cartridge Receiver (E/G) 6286
13 Cartridge Guard, Composite, Std (G Only) 418023
13 Cartridge Guard, Composite, LT(G Only) 418024
13 Cartridge Guard, Metal, Std (E Only) 3652
13 Cartridge Guard, Metal, CR (E Only) 53468
13 Cartridge Guard, Metal, LT(E Only) 12997
14 Ring Pin Cartridge Guard, Composite (G Only) 418243
14 Ring Pin Cartridge Guard, Metal (E Only) 6330
15 Ring Pin and Chain Assembly (E/G) 7095
16 Rivet, Cartridge Guard (E Only) 6579
17 Carrying Handle, Std (E/G) 6169
17 Carrying Handle, CR (E/G) 17902
18 Carrying Handle Rivet (E/G) 1265
19 Carrying Handle Spring (E/G) 2902
20 Fill Cap w/Indicator, Std (E/G) 17999
20 Fill Cap w/Indicator, CR (E/G) 422808
20 Fill Cap w/o Indicator, Std (E/G) 32028
20 Fill Cap w/o Indicator, CR (E/G) 17903
21 Gasket, Fill Cap (E/G) 6190
22 Quad Ring, Fill Cap (E/G) 6273
23 Cap, Plastic (E/G)(Seal & Retaining Ring) 17633
Fig
No
Description Part No
 24 Stem, Indicator (E/G) 27648
 25 Quad Ring (E/G) 17630
 26 Retaining Ring (E/G) 1239
 27 Hanger Hook (E/G) 3651
 28 Hose w/Couplings, Std (E/G) 13005
 28 Hose w/Couplings, CR (E/G) 77739
 29 O-Ring (E/G) 6263
30 Inspection Seal, Visual (E/G) 15999
 31 Nameplate, Operating, Replacement webpage
 32 Label, Low Temperature (E Only) 25167
 33 Nameplate, Maintenance, Replacement w/o UL webpage
 34 Nozzle Assembly, PLUS-FIFTYStd 14048
 34 Nozzle Assembly, AStd /LT(E/G) 31407
 34 Nozzle Assembly, K Std/LT(E/G) 30787
 34 Nozzle Assembly, CR-A(E/G) 53470
 34 Nozzle Assembly, CR-K (E/G) 54732
 35 Nozzle Plunger (E/G) 56117
 36 O-Ring, Nozzle Assembly (E/G) 3469
 37 Rivet, Nozzle Handle (E/G) 3621
 38 Handle, Nozzle Assembly, Std (G Only) 419389
 38 Handle, Nozzle Assembly, CR (G Only) 423461
 39 Spring, Nozzle Handle (G Only) 419422
 39 Spring, Nozzle Handle (E Only) 30399
 40 Caplug (2) (E Only) 25154
 41 Tip, Nozzle Assembly, PLUS-FIFTY Std, (E/G) 25773
 41 Tip, Nozzle Assembly, AStd (E/G) 31502
 41 Tip, Nozzle Assembly, K Std (E/G) 30788
 42 Nozzle Holder Assembly (E Only) 74206
 43 Nozzle Platform Screw (2) (E Only) 14908
 44 Gas Tube Assembly (E/G) 6313
 45 Hose Seal (Pkg of 30) (G Only) 415659
 46 Retaining Ring (Pkg of 50) (G Only) 415855
 -- Extinguisher Weather Cover (Not Shown) (E/G) 67636
 -- Hose Inspection Seal Kit (Seal & Retaining Ring) 426687

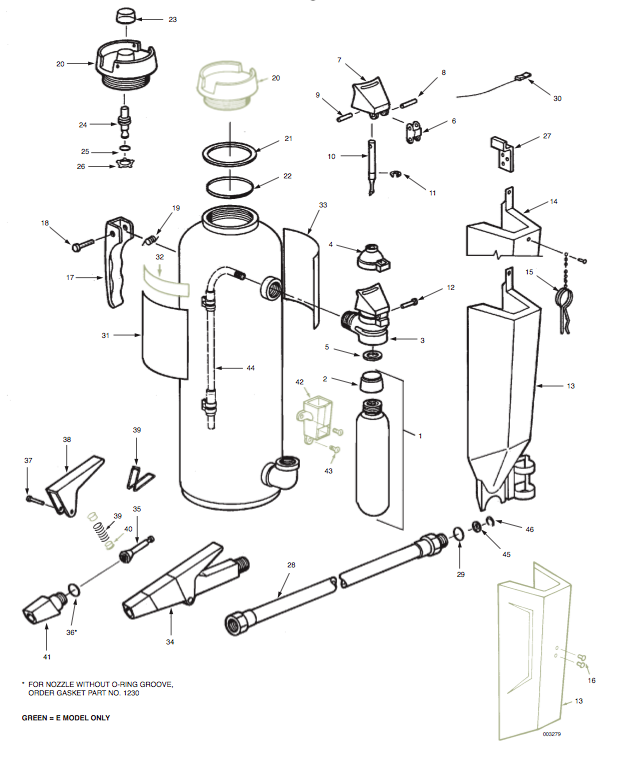

MODELS 20-E AND 20-G

RedLineFireExtinguisherParts20-E20-G

Fig
No
Description Part No
1 Cartridge w/Cap, CO2, 20-L(E/G) 4614
1 Cartridge w/Cap, N2, LT-20-R (E/G) 7032
2 Cartridge Shipping Cap, LH (E/G) 77250
2 Cartridge Shipping Cap, RH (E/G) 77251
3 Cartridge Receiver, RH (E/G) 1356
3 Cartridge Receiver, LH (E/G) 3626
3 Cartridge Receiver, CR, LH (E/G) 17913
4 Cap, Rubber (E/G) 1057
5 Gasket, Cartridge Receiver (E/G) 181
6 Link, Cartridge Receiver (E/G) 1068
7 Puncture Lever, Std (E/G) 3628
7 Puncture Lever, CR (E/G) 17915
8 Spring Pin, Link to Puncture Lever (E/G) 4108
9 Spring Pin, Puncture Lever to Puncture Pin (E/G) 4109
10 Puncture Pin (E/G) 25305
11 Retaining Ring (E/G) 1903
12 Rivet, Link to Cartridge Receiver (E/G) 6286
13 Cartridge Guard, Composite, Std (G Only) 416346
13 Cartridge Guard, Composite, LT(G Only) 416524
13 Cartridge Guard, Metal (G Only) 426447
13 Cartridge Guard, Metal, Std (E Only) 6302
13 Cartridge Guard, Metal, CR (E Only) 17917
13 Cartridge Guard, Metal, LT(E Only)HF (G Only) 6967
14 Ring Pin Cartridge Guard, Composite (G Only) 416347
14 Ring Pin Cartridge Guard, Metal (G Only) 426450
14 Ring Pin Cartridge Guard, Metal (E Only) 7097
15 Ring Pin and Chain Assembly (E/G) 7095
16 Rivet, Cartridge Guard (E Only) 6579
17 Carrying Handle, Std (E/G) 6169
17 Carrying Handle, CR (E/G) 17902
18 Carrying Handle Rivet (E/G) 1265
19 Carrying Handle Spring (E/G) 2902
20 Fill Cap w/Indicator, Std (E/G) 17999
20 Fill Cap w/Indicator, CR (E/G) 422808
20 Fill Cap w/o Indicator, Std (E Only) 32028
20 Fill Cap w/o Indicator, CR (E Only) 17903
21 Gasket, Fill Cap (E/G) 6190
22 Quad Ring, Fill Cap (E/G) 6273
23 Cap, Plastic (E/G) 17633
24 Stem, Indicator (E/G) 27648
25 Quad Ring (E/G) 17630
26 Retaining Ring (E/G) 1239
Fig
No
Description Part No
27 Hanger Hook (E/G) 3651
28 Hose w/Couplings, Std (E/G) 7091
28 Hose w/Couplings, CR (E/G) 24459
29 O-Ring (E/G) 6323
30 Inspection Seal, Visual (E/G) 15999
31 Nameplate, Operating, Replacement webpage
32 Label, Low Temperature (E Only) 25167
33 Nameplate, Maintenance, Replacement w/o UL webpage
34 Nozzle Assembly, PLUS-FIFTYStd, (E/G) 14551
34 Nozzle Assembly, LT-A(E/G) 14382
34 Nozzle Assembly, HF-A, HF-K (E/G) 15156
34 Nozzle Assembly, PLUS-FIFTYCR (E/G) 17905
34 Nozzle Assembly, A& K/LTK Std (E/G) 30789
34 Nozzle Assembly, CR-A, CR-K, CR-LTK (E/G) 30817
35 Nozzle Plunger (E/G) 56117
36 O-Ring, Nozzle Assembly (E/G) 3469
37 Rivet, Nozzle Handle (E/G) 3621
38 Handle, Nozzle Assembly, Std (G Only) 419389
38 Handle, Nozzle Assembly, CR (G Only) 423461
38 Handle, Nozzle Assembly, CR (E Only) 419389
38 Handle, Nozzle Assembly, HF (G Only) 426629
38 Handle, Nozzle Assembly, HF (E Only) 6580
39 Spring, Nozzle Handle (G Only) 419422
39 Spring, Nozzle Handle (E Only) 30399
40 Caplug (2) (E Only) 25154
41 Tip, Nozzle Assembly, LT-A/CRLT-A, MLKYL 17932
41 Tip, Nozzle Assembly, LT-A, LT-K (E/G) 25778
41 Tip, Nozzle Assembly, HF-A, HF-K (E/G) 15780
41 Tip, Nozzle Assembly, PLUS-FIFTYStd, (E/G) 17908
41 Tip, Nozzle Assembly, A& K Std (E/G) 30790
42 Nozzle Holder Assembly (E Only) 74206
43 Nozzle Platform Screw (2) (E Only) 14908
44 Gas Tube Assembly (E/G) 6317
45 Hose Seal (Pkg of 30) (G Only) 415660
46 Retaining Ring (Pkg of 50) (G Only) 415856
-- Extinguisher Weather Cover (Not Shown) (E/G) 67637
-- Gasket Kit (Quad, Flat Gasket, Hose O-Ring) 415877
-- Hose Inspection Kit (Seal, Retainer Clip) 426688



MODELS 30-E AND 30-G

RedLineFireExtinguisherParts30-E30-G

Fig
No
Description Part No
1 Cartridge w/Cap, CO2, 30-L(E/G) 4615
  Cartridge w/Cap, N2, LT-30-R (E/G) 5373
2 Cartridge Shipping Cap, LH (E/G) 77250
2 Cartridge Shipping Cap, RH (E/G) 77251
3 Cartridge Receiver, RH (E/G) 1356
3 Cartridge Receiver, LH (E/G) 3626
3 Cartridge Receiver, CR, LH (E/G) 17913
4 Cap, Rubber (E/G) 1057
5 Gasket, Cartridge Receiver (E/G) 181
6 Link, Cartridge Receiver (E/G) 1068
7 Puncture Lever, Std (E/G) 3628
7 Puncture Lever, CR (E/G) 17915
8 Spring Pin, Link to Puncture Lever (E/G) 4108
9 Spring Pin, Puncture Lever to Puncture Pin (E/G) 4109
10 Puncture Pin (E/G) 25305
11 Retaining Ring (E/G) 1903
12 Rivet, Link to Cartridge Receiver (E/G) 6286
13 Cartridge Guard, Composite (G Only) 418025
13 Cartridge Guard, Metal (G Only)426455 426455
13 Cartridge Guard, Metal, Std (E Only) 6287
13 Cartridge Guard, Metal, CR (E Only) 17938
13 Cartridge Guard, Metal, LT(E Only) 6971
13 Cartridge Guard, Metal, MET-L-X, LITH-X (E Only) 426455
13 Cartridge Guard, Metal, MET-L-KYL (E Only) 426455
13 Cartridge Guard, Composite LT(GOnly) 418026
14 Ring Pin Cartridge Guard, Composite (G Only) 418244
14 Ring Pin Cartridge Guard, Metal (G Only) 426458
14 Ring Pin Cartridge Guard, Metal (E Only) 7207
15 Ring Pin and Chain Assembly (E/G) 7095
16 Rivet, Cartridge Guard (E Only) 6579
17 Carrying Handle, Standard (E/G) 6169
17 Carrying Handle, CR (E/G) 17902
18 Carrying Handle Rivet (E/G) 1265
19 Carrying Handle Spring (E/G) 2902
20 Fill Cap w/Indicator, Standard (E/G) 17999
20 Fill Cap w/Indicator, CR (E/G) 422808
20 Fill Cap w/o Indicator, Standard (E Only) 32028
20 Fill Cap w/o Indicator, CR (E Only) 17903
21 Gasket, Fill Cap (E/G) 6190
22 Quad Ring, Fill Cap (E/G) 6273
23 Cap, Plastic (E/G) 17633
24 Stem, Indicator (E/G) 27648
25 Quad Ring (E/G) 17630
26 Retaining Ring (E/G) 1239
27 Hanger Hook (E/G) 3651
Fig
No
Description Part No
28 Hose w/Couplings, Std (E/G) 7083
28 Hose w/Couplings, CR (E/G) 24451
29 O-Ring (E/G) 6324
30 Inspection Seal, Visual (E/G) 15999
31 Nameplate, Operating, Replacement webpage
32 Label, Low Temperature (E Only) 25167
33 Nameplate, Maintenance, Replacement w/o UL webpage
34 Nozzle Assembly, LT-A, MET-L-KYL(E/G) 14045
34 Nozzle Assembly, LT-K (E/G) 14047
34 Nozzle Assembly, HF-A, HF-K (E/G) 15159
34 Nozzle Assembly, PLUS-FIFTYLT (E Only) 14706
34 Nozzle Assembly, PLUS-FIFTYCR (E/G) 17931
34 Nozzle Assembly, A& K Std (E/G) 30778
34 Nozzle Assembly, CR-A, CR-K (E/G) 30818
34 Nozzle Assembly, MET-L-X (E/G) 30464
34 Nozzle Assembly, LITH-X (E/G) 30464
35 Nozzle Plunger (E/G) 56117
36 O-Ring, Nozzle Assembly (E/G) 3469
37 Rivet, Nozzle Handle (E/G) 3621
38 Handle, Nozzle Assembly, Standard (G Only) 419389
38 Handle, Nozzle Assembly, Std (E Only) 6266
38 Handle, Nozzle Assembly, CR (G Only) 423461
38 Handle, Nozzle Assembly, CR (E Only) 17907
38 Handle, Nozzle Assembly, HF (G Only) 426629
38 Handle, Nozzle Assembly, HF (E Only) 6580
39 Spring, Nozzle Handle (G Only) 419422
39 Spring, Nozzle Handle (E Only) 30399
40 Caplug (2) (E Only) 25154
41 Tip, Nozzle Assembly, PLUS-FIFTYLT(E Only) 25779
41 Tip, Nozzle Assembly, LT-K (E/G) 17946
41 Tip, Nozzle Assembly, HF-A, HF-K (E/G) 25781
41 Tip, Nozzle Assembly, LT-A, MET-L-KYL (E/G) 1732
41 Tip, Nozzle Assembly, A& K Std (E/G) 30791
41 Tip, Nozzle Assembly, MET-L-X, LITH-X (E/G) 25799
42 Nozzle Holder Assembly (E Only) 74206
43 Nozzle Platform Screw (2) (E Only) 14908
44 Gas Tube Assembly (E/G) 6320
45 Hose Seal (Pkg of 30) (G Only) 415661
46 Retaining Ring (Pkg of 50) (G Only) 415857
-- Extinguisher Weather Cover (Not Shown) (E/G) 67638
-- Gasket Kit (Quad Ring, Flat Gasket, Hose O-Ring) 415878
-- Hose Inspection Seal Kit (Seal & Retainer Clip) 426689
