| Fig No |
Description |
Part No |
| 1 |
Cap (Forged Brass), Agent Cylinder |
6993 |
| 1A |
Cap (Forged Brass), Agent Cylinder w/Pressure Indicator |
12576 |
| 2 |
Gasket, Cap |
2272 |
| 3 |
Bumper, Rubber |
1990 |
| 4 |
Argon Pressure Regulator |
10915 |
| 5 |
Lead Wire Seal for Argon Valve |
4195 |
| 6 |
Argon Cylinder Valve (Hand Wheel) w/Gauge |
2233 |

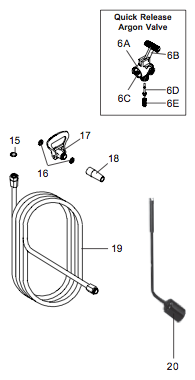

| 6A |
Argon Cylinder Valve (Quick Release) w/Gauge |
12467 |
| 6B |
Valve Letter ("T" Handle w/Roll Pin & Knobs) |
6373 |
| 6C |
Gauge - 3000 psi |
10213 |
| 6D |
Valve Stem Assembly |
9897 |
| 6E |
Spring |
0501 |
| 7 |
Argon Cylinder, 110 cu ft, Charged, Including Valve, Gauge & Protective Cap |
10906 |
| 8 |
Pressurizing Hose Assembly |
2234 |
| 9 |
Retaining Strap (Top) w/Hose Hanger - Argon Cylinder |
10906 |
| 9A |
Retaining Strap (Bottom) - Argon Cylinder |
11020 |
| 10 |
Bolt, Washer & Wing Nut |
11970 |
| 11 |
Pictogram - 680, 681 |
10910 |
| 12 |
Nameplate (Mylar Label) - Non FM - 680 |
10909 |
| Nameplate (Mylar Label) - 681 |
10911 |
| 13 |
Wheel Assembly - 36" x 2½" w/Rubber Tread |
10917 |
| 14 |
Hub Cap - 36" Wheels |
10903 |
| 15 |
Moisture Seal |
7411 |
| 16 |
Gasket, Hose/Nozzle |
3877 |
| 17 |
Ball Valve Assembly |
6279 |
| 18 |
Nozzle Tip (.312) |
6467 |
| 19 |
Hose Assembly - ¾ x 25 ft |
10913 |
| 20 |
Extension Wand Assembly |
11181 |
