Amerex Adapters

Adapters - Fill (Recharge) & Hydrotest (Cylinder & Hose)

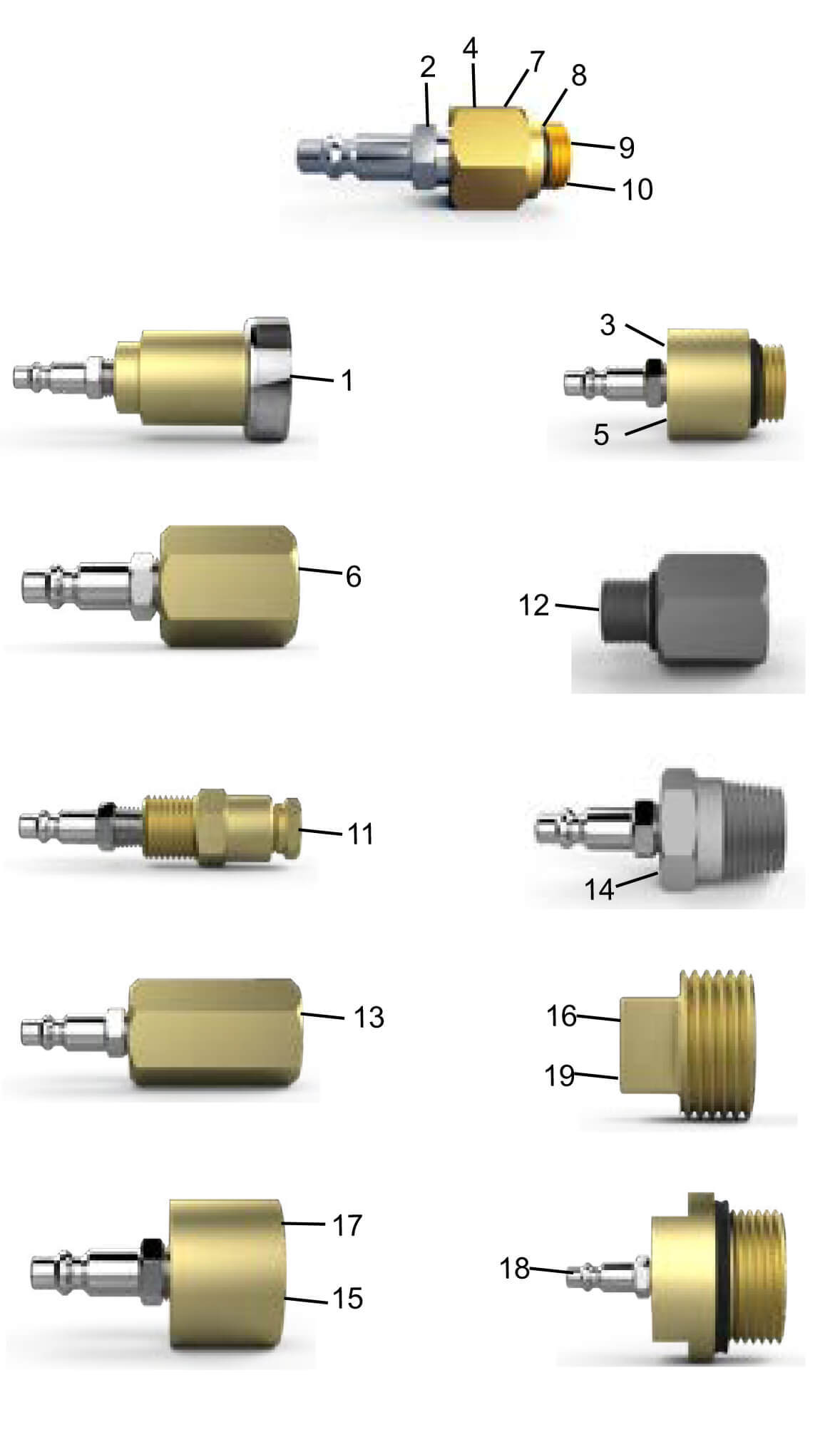

Browse Amerex fill and hydro-test adapters by extinguisher type. Click any of the red Part Numbers below to open the product page in a new tab.

Item
No.		 Part
No.		 Description
Water, Water Mist, Wet Chemical & Foam Extinguishers
1 03181 Hydro-test Adapter - 1½”-16 UN
4* 02141 Fill Adapter - Hansen Quick Connect - 240, 250, 252, 254, 260, 262, C260, C262, C270, C272 - 5/8”-18 UNF
6* 09492 Fill Adapter - Hansen Quick Connect - B270, B272, B260, B262 - 1/2”-14 NPSL
Dry Chemical - Aluminum Valve Extinguishers
2 01720 Fill Adapter - Hansen Quick Connect - 3/8”-24 UNF
3* 03610 Hydro-test Adapter - 1”-12 UNF
4* 02141 Fill Adapter - Hansen Quick Connect 5/8” - 18 UNF (20 lb. Aluminum Valve)
Dry Chemical - Brass Valve, High Performance, CL-D Extinguishers (Female Thread)
4* 02141 Fill Adapter - Hansen Quick Connect 5/8” UNF
5* 03038 Hydro-test Adapter - 1¼”-12 UNF
6* 09492 Fill Adapter - High Performance Old style male thread - 1/2”-14 NPSL
Halon 1211 - Aluminum Valve Extinguishers
7 04485 Fill Adapter - Hansen Quick Connect - 3/8”-24 UNF
3* 03610 Hydro-test Adapter - 1”-12 UNF
Halon 1211 - Brass Valve Extinguishers
8 04482 Fill Adapter - Hansen Quick Connect - 5/8”-18 UNF
5* 03038 Hydro-test Adapter - 1¼”-12 UNF
Halotron I - Aluminum Valve Extinguishers
9 14569 Fill Adapter - Snap Tite Quick Connect - 3/8”-24 UNF
3* 03610 Hydro-test Adapter - 1”-12 UNF
Halotron I - Brass Valve Extinguishers
10 14568 Fill Adapter - Snap Tite Quick Connect - 5/8”-18 UNF
5* 03038 Hydro-test Adapter - 1¼”-12 UNF
Carbon Dioxide - All CO2 Hand Portable Extinguishers
11 01316 Fill Adapter - Hansen Quick Connect - 1/4”-18 NPT, installs on 2 1/2 lb., 5 lb. discharge tube - 3/8”-18 NPT with the bushing removed. Install on 10 lb., 15 lb., 20 lb. CO2 elbow or valve outlet after 07/2020
12 01290 Hydro-test Adapter 1-1/8” - 12 UNF X 1/2”-14 NPT
Carbon Dioxide - Wheeled 50 lb. and 100 lb. Extinguishers
13 09902 Fill Adapter - Hansen Quick Connect 1/2”-14 NPT
14* 04892 Hydro-test Adapter 3/4”-14 NPT
Wheeled Stored Pressure - Dry Chemical, Halotron I and Halon 1211
15* 06160 Fill Adapter - Hansen Quick Connect
50 lb. Dry Chemical 3/4”-11 ½” NH
5* 03038 Hydro-test Adapter - 1¼”-12 UNF (50 lb.)
16 06157 Hydro-test Adapter (Hose) (Male Plug) - Use with P/N: 6160 for 1/2” hose assemblies 3/4”-11½” NH
17* 09857 Fill Adapter - 125, 150 & 250 lb. Dry Chemical; 150 lb. Halon 1211, 150 lb. Halotron I and 150 lb. Novec 1”-8 NH, Hydro-test Adapters, Agent Cylinders 110 ft³ Models
18* 05152 Hydro-test Adapter (Cylinder) - 125, 150 & 250 lb. Dry Chemical; 150 lb. Halon 1211, 150 lb. Halotron I and 150 lb. Novec 2”-8 UN
19* 05723 Hydro-test Adapter (Male Plug) (Hose) - Use with P/N: 9857 for 3/4” and 1” hose assemblies 1”-8 NH
Wheeled Nitrogen or Argon Cylinder Operated - Gas Cylinder
14* 04892 Hydro-test Adapter for gas cylinder and agent cylinder except 110 ft³ models 3/4”-14 NPT
Hose Hydro-test for Wheeled Dry Chemical, Foam, Halon, Halotron, Novec: For 1/2” hose use 06160 adapter and 06157 plug. For 3/4” and 1” hose use 09857 adapter and 05723 plug.
* Adapter can be used on more than one type extinguisher.
Replacement O-Rings / Gaskets for Adapters
Part
No.		 Description
01532-P O-Ring for Item: 2, 7, 9
06978-P O-Ring for Item: 4, 8, 10
05241-P O-Ring for Item: 3
05240-P O-Ring for Item: 1, 5
09494-P Gasket for Item: 6
01124-P O-Ring for Item: 12
06056-P Gasket for Item: 15
03877-P Gasket for Item: 17
05239-P O-Ring for Item: 18

!
