ANSUL RED LINE Wheeled 150-C, 350-C, 150-D & 350-D Extinguisher Parts

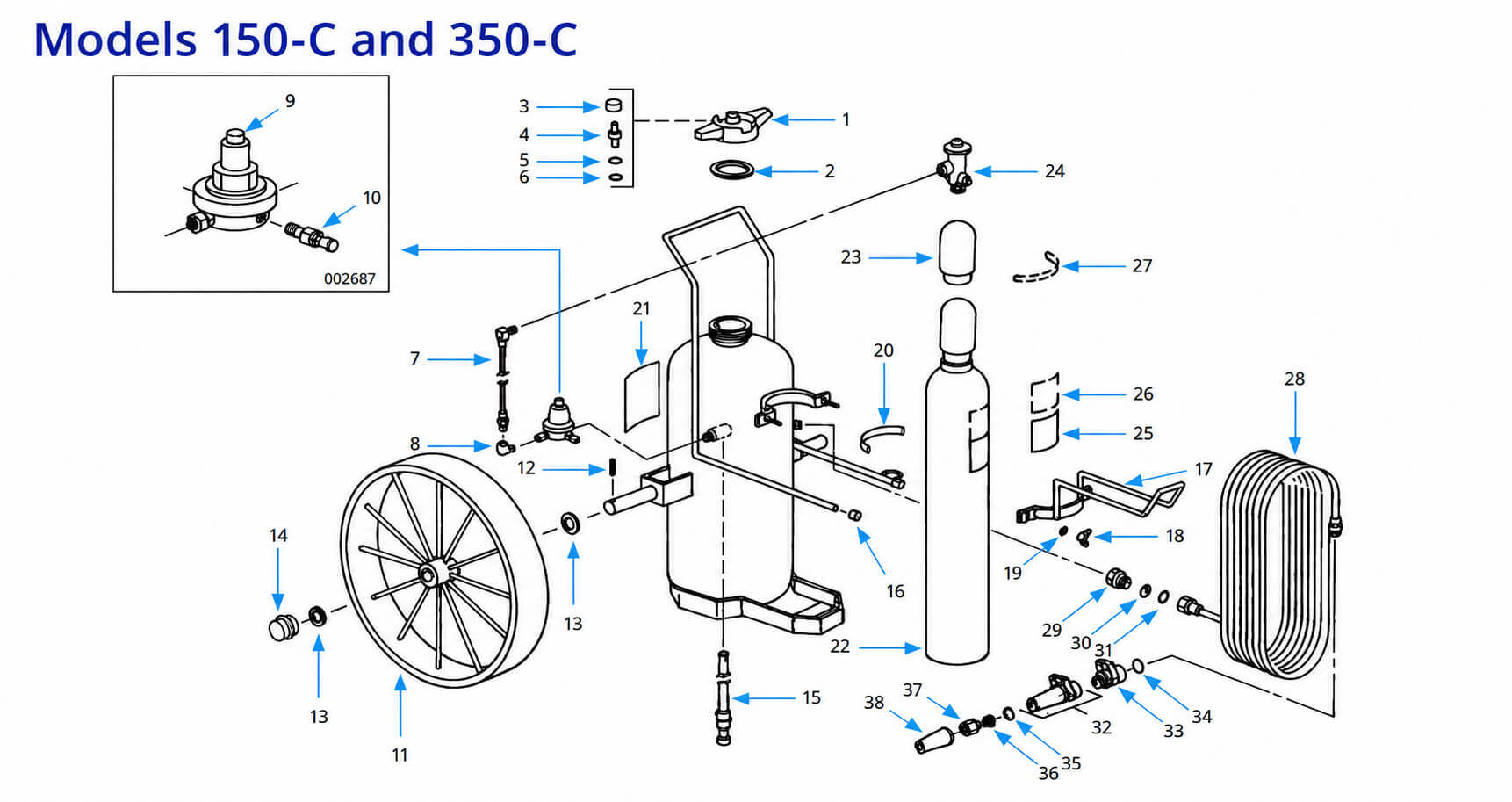

ANSUL RED LINE Model 150-C wheeled fire extinguisher exploded parts diagram

Match the diagram numbers shown above to the corresponding parts in the table below.

150 lb RED LINE Model 150-C Parts

Diagram No. Description Part No.
1Fill cap, indicator027335
2Gasket003461
3Indicator cap017633
4Indicator stem027648
5Quad ring017630
6Retaining ring071675
7Nitrogen hose assembly423585
8Street elbow078409
9Pressure regulator replacement (only)416938*
10Pressure relief valve078704
11Wheel, steel, standard029508
-Wheel, wide, WW031015
-Wheel, rubber coated031012
12Spring pin008560
13Washer067684
14Hub cap056739
15Gas tube (without coupling)078713
16Cap004120
17Clamp/hose hanger078328
18Wing nut078315
19Washer001870
20Rubber pad029414
21Nameplate, replacement w/o UL, FORAY074338
-Nameplate, replacement w/o UL, PLUS-FIFTY C/
PURPLE-K		016444
22Nitrogen cylinder assembly, 110 ft³, quick opening003106
-Nitrogen cylinder assembly, w/valve024707
23Shipping cap, nitrogen cylinder073066
24Valve, nitrogen cylinderLearn more »
25Label, nitrogen cylinder003477
-Label, nitrogen cylinder, UN1066076981
26Label, nitrogen cylinder, QO valve010994
27Label, cylinder cap, QO valve011391
28Hose, 3/4in. x 50ft (15m)000960
-Hose, 3/4in. x 100ft (30m)004761
-Hose, 3/4in. x 50ft (15m), LT002272
-Hose, 3/4in. x 100ft (30m), LT026299
29Adaptor, FORAY, PLUS-FIFTY C, PURPLE-K, LR024931
30Visual hose inspection disc014236
31Gasket000670
32Nozzle assembly, FORAY, PLUS-FIFTY C029506
-Nozzle assembly, PURPLE-K031449
-Nozzle assembly, LR031013
33Ball valve, nozzle008101
34Gasket, valve to hose000670
35Gasket, nozzle, standard008105
-Gasket, nozzle, LR012734
36Tip, nozzle012703
37Sleeve, nozzle008103
38Body, nozzle, except LR & PURPLE-K029507
-Body, nozzle, LR031014
-Body, nozzle, PURPLE-K031448
*Regulator replacement
See manual part number 053141 - "Pressure regulator testing for wheeled and stationary extinguishers"
ANSUL RED LINE Model 350-C wheeled fire extinguisher exploded parts diagram

Match the diagram numbers shown above to the corresponding parts in the table below.

350 lb RED LINE Model 350-C Parts

Diagram No. Description Part No.
1Fill cap, indicator027335
2Gasket003461
3Indicator cap017633
4Indicator stem027648
5Quad ring017630
6Retaining ring071675
7Nitrogen hose assembly423585
8Street elbow078409
9Pressure regulator replacement (only)416938*
10Pressure relief valve078704
11Wheel, steel, standard029508
12Spring pin008560
13Washer067684
14Hub cap056739
15Gas tube (without coupling)077912
16Cap004120
17Clamp/hose hanger078362
18Wing nut078315
19Washer001870
20Rubber pad079183
21Nameplate, replacement w/o UL, FORAY074338
-Nameplate, replacement w/o UL, PLUS-FIFTY C/
PURPLE-K		016444
22Nitrogen cylinder assembly, 220ft³024708
-Nitrogen cylinder assembly, QO valve031061
23Shipping cap, nitrogen cylinder073066
24Valve, nitrogen cylinderPage 53
25Label, nitrogen cylinder003391
26Label, nitrogen cylinder, QO valve010994
27Label, cylinder cap, QO valve011391
28Hose, 1in. x 50ft (15m)002271
-Hose, 1in. x 100ft (30m)010930
-Hose, 1in. x 50ft (15m), LT002133
-Hose, 1in. x 100ft (30m), LT010931
29Adaptor, FORAY, PLUS-FIFTY C, PURPLE-K, LR078316
-Adaptor, PURPLE-K, except LR024930
30Visual hose inspection disc014237
31Gasket, valve to hose011112
32Nozzle assembly, FORAY, PLUS-FIFTY C031922
-Nozzle assembly, PURPLE-K031547
-Nozzle assembly, LR025906
33Ball valve, nozzle012727
34Gasket, valve to hose011112
35Gasket, nozzle, standard008105
-Gasket, nozzle, LR012734
36Tip, nozzle012707
37Sleeve, nozzle008103
38Body, nozzle, except LR029507
-Body, nozzle, LR025907
-Body, nozzle, PURPLE-K031548
-Regulator test kit (not shown)078689
*Regulator replacement
See manual part number 053141 - "Pressure regulator testing for wheeled and stationary extinguishers"

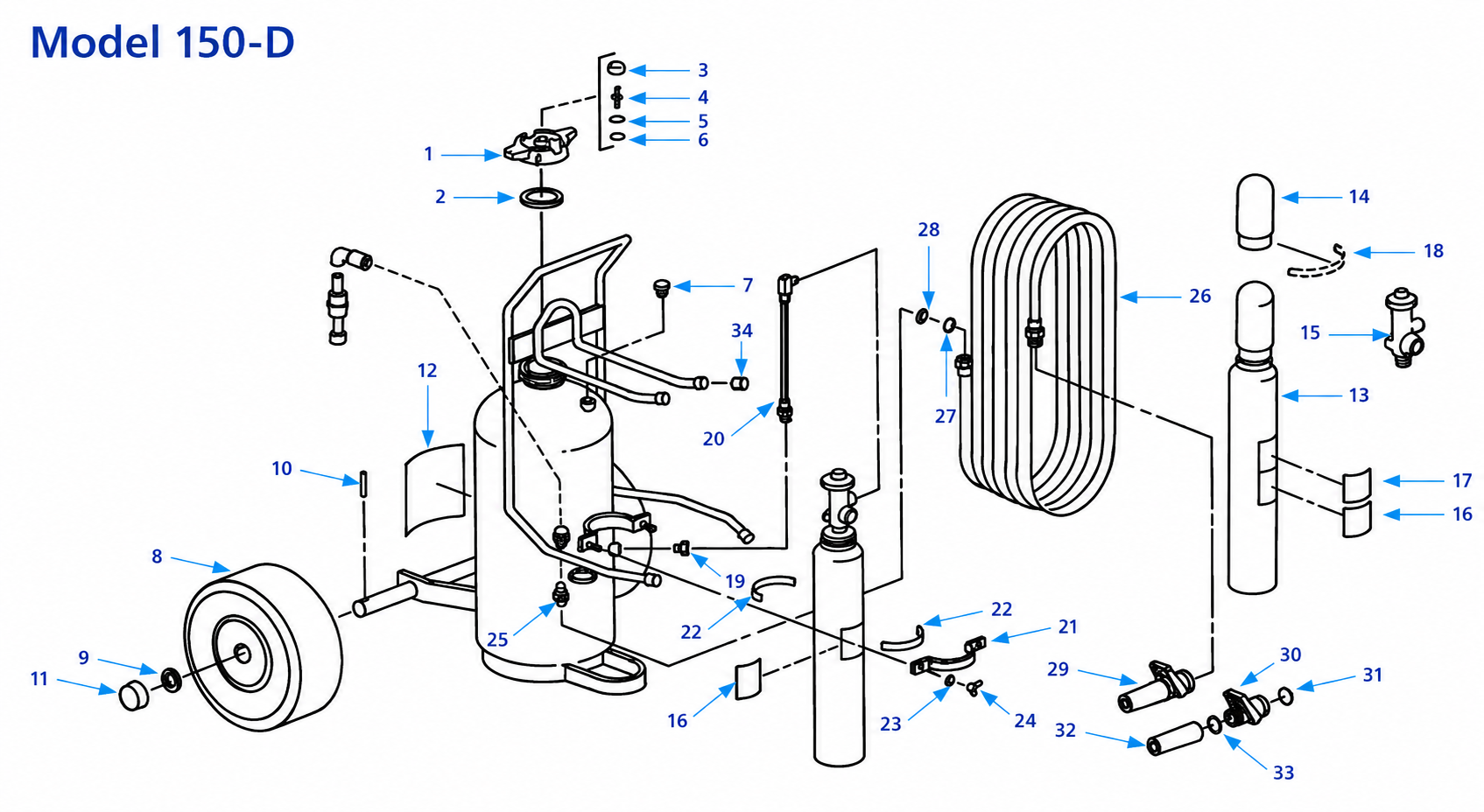

ANSUL RED LINE Model 150-D wheeled fire extinguisher exploded parts diagram

Match the diagram numbers shown above to the corresponding parts in the table below.

150 lb RED LINE Model 150-D Parts

Diagram No. Description Part No.
1Fill cap, indicator, w/gasket027335
2Gasket, fill cap003461
3Housing, indicator017633
4Stem, indicator027648
5Quad ring017630
6Retaining ring071675
7Valve, safety relief078380
8Wheel assembly, semi-pneumatic053870
9Washer053541
10Pin, Cotter019620
11Cap, hub053867
12Nameplate, replacement w/o UL, FORAY074338
-Nameplate, replacement w/o UL, PLUS-FIFTY C/
PURPLE-K		016444
13Cylinder, nitrogen 23ft³, std. valve054694
-Cylinder, nitrogen 23ft³, quick‑opening valve054695
14Cap, safety shipping073066
15Valve assembly, nitrogen cylinderPage 53
16Label, nitrogen cylinder, std.053182
17Label, nitrogen cylinder, QO valve010994
18Label, nitrogen cylinder cap, QO valve011391
-Plug, safety, QO valve (not shown)011453
19Bushing 3/8in. x 1/4in.019120
20Hose and adaptor assembly423581
21Clamp assembly024877
22Rubber pad059748
23Washer001870
24Wingnut078315
25Adaptor, tank outlet to hose024931
26Hose assembly, 3/4in. x 50ft (15m)000960
-Hose, 3/4in. x 50ft (15m), LT002272
27Gasket, hose coupling000670
28Disc, visual hose inspection014236
29Nozzle assembly, standard031449
-Nozzle assembly, LR031013
30Ball valve, nozzle008101
31Gasket, valve to hose000670
32Body, nozzle, standard031448
-Body, nozzle, LR031014
33Gasket, nozzle, standard008105
-Gasket, nozzle, LR012734
34Cap, protective004120
35Gas tube assembly436226
-Tag, inspection (not shown)002364
-Nitrogen cylinder label076981

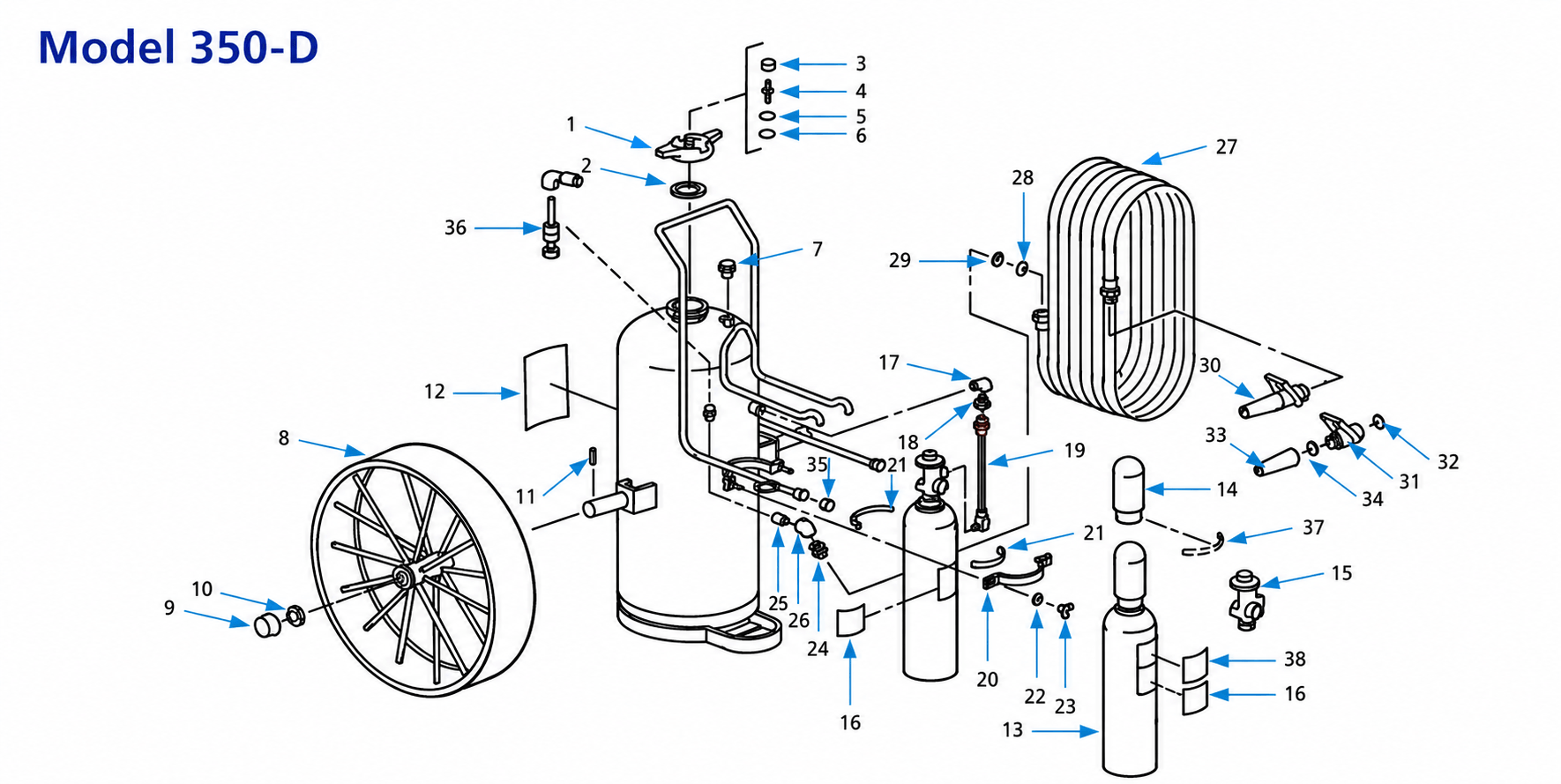

ANSUL RED LINE Model 350-D wheeled fire extinguisher exploded parts diagram
