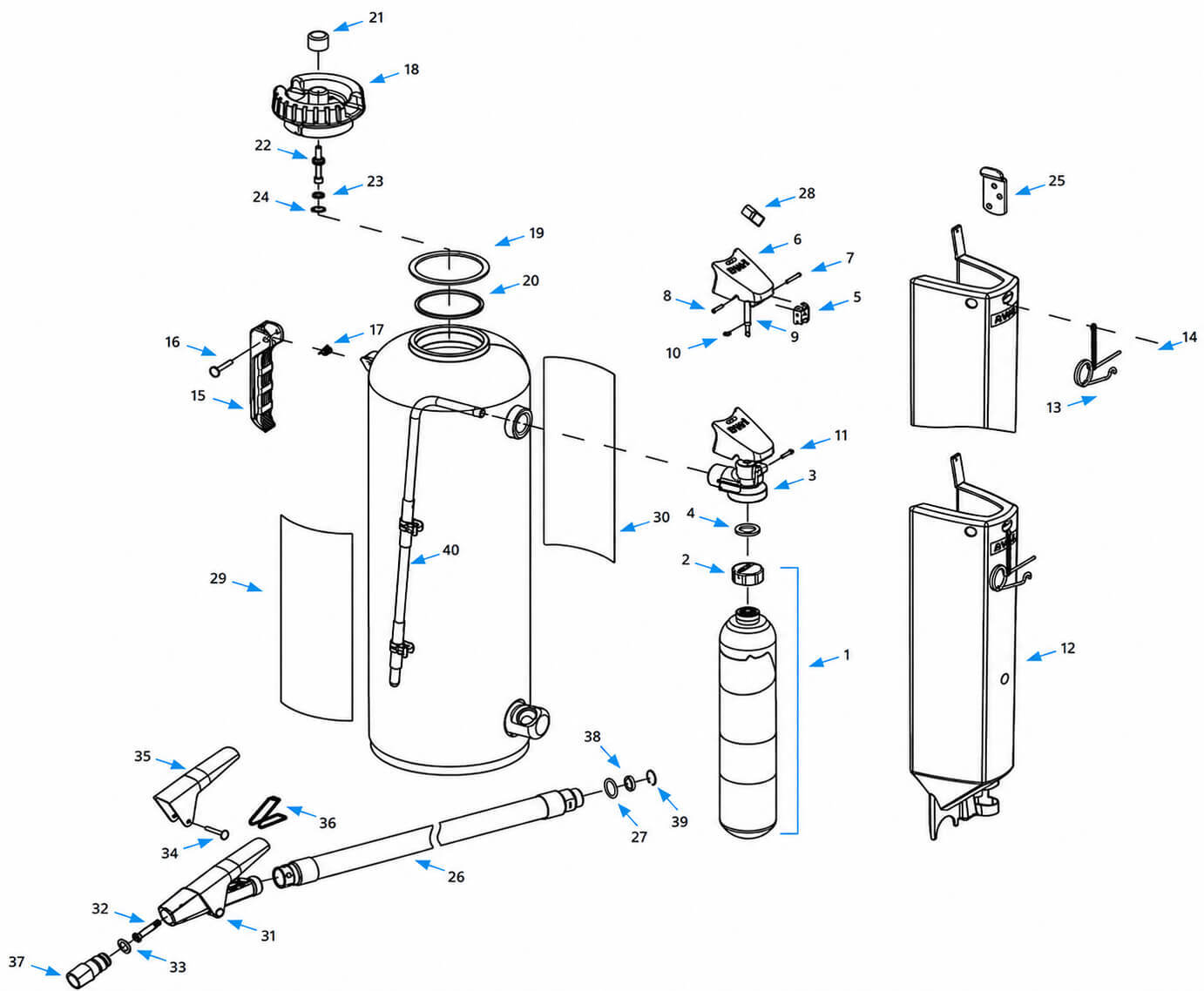

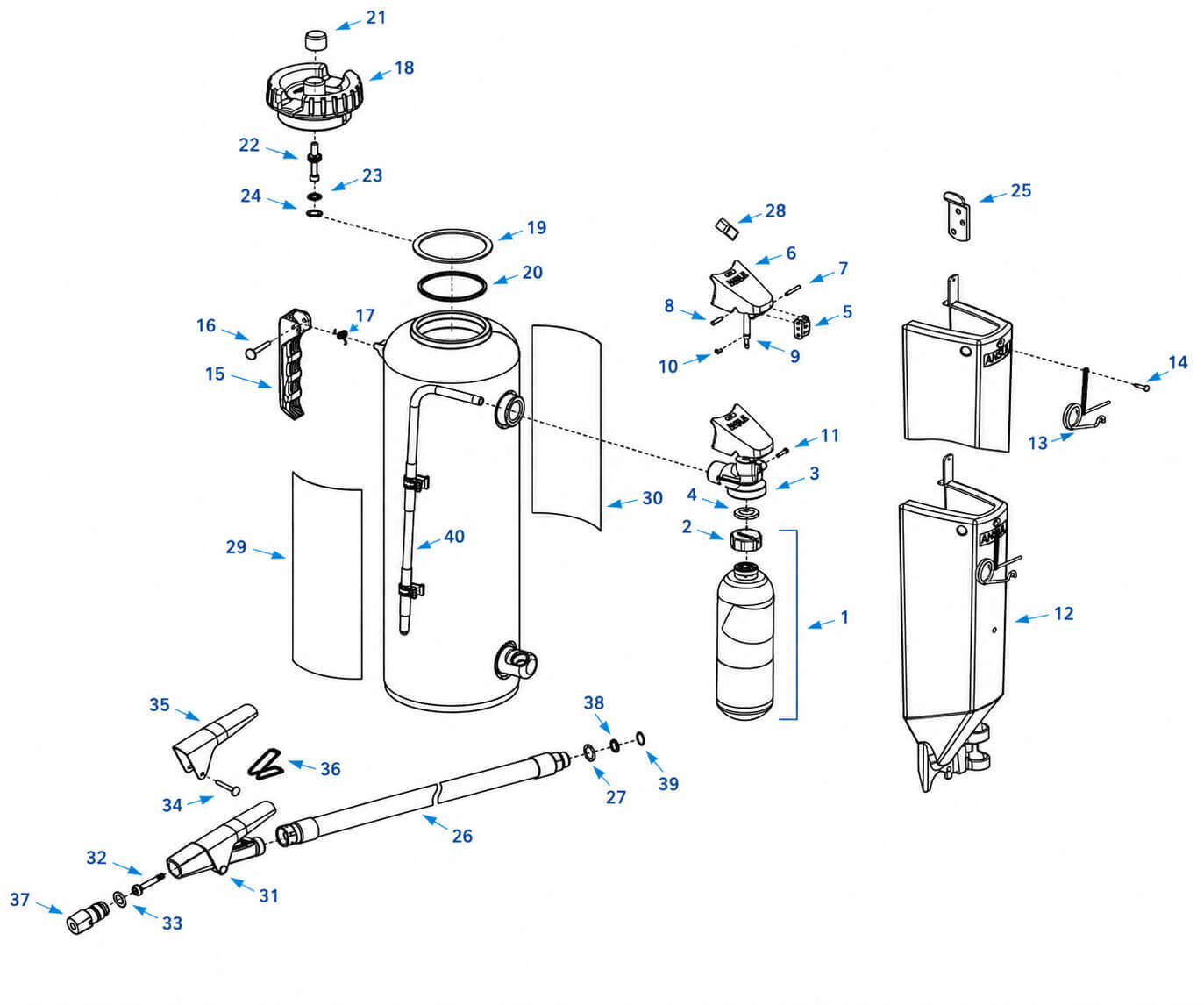

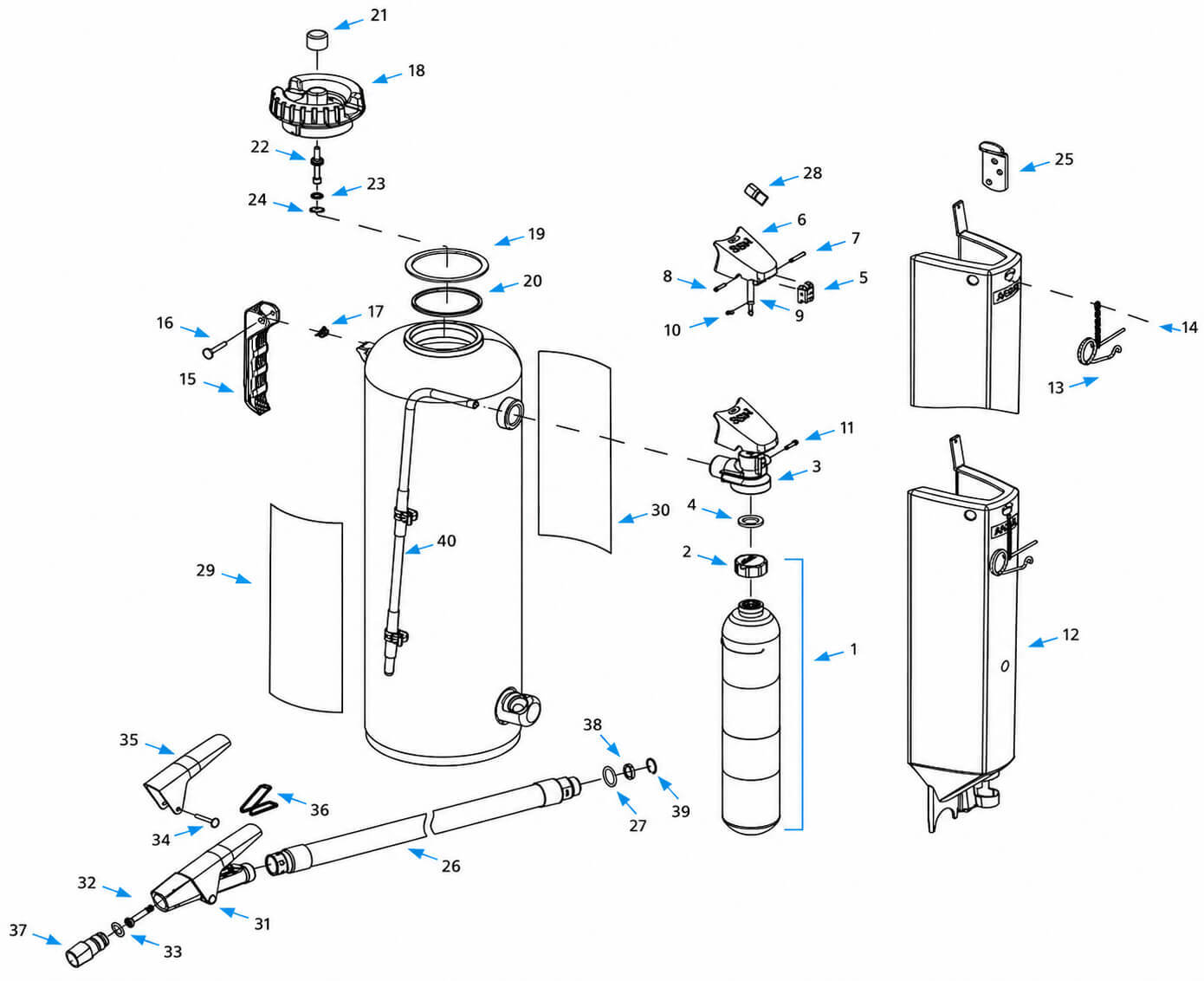

RED LINE Models 10-G, 20-G & 30-G Breakout Diagram & Parts
ANSUL RED LINE Cartridge-Operated Fire Extinguisher Parts
Find replacement parts for ANSUL RED LINE cartridge-operated fire extinguishers, including 10 lb Model 10-G, 20 lb Model 20-G, and 30 lb Model 30-G. Search by diagram number, description, model, or part number. Product numbers with available Fire Safety Supply listings are linked directly to the corresponding product page. For assistance confirming compatibility or availability, call Fire Safety Supply at 1-800-498-3473.
10–30 lb RED LINE Cartridge-Operated Models
This parts reference covers the 10 lb, 20 lb, and 30 lb RED LINE cartridge-operated extinguisher configurations listed below. Because certain components vary by extinguisher size, agent configuration, and nozzle type, use the complete model designation, diagram number, description, and part number when identifying replacement components.
10 lb Redline, Model 10-G Parts List
Match the diagram numbers to the corresponding rows in the parts tables below. A dash indicates an accessory or service item that is not individually numbered on the diagram. Some diagram numbers have more than one part option depending on model or configuration.
| Diagram No. | Description | Part No. |
|---|---|---|
| 1 | Cartridge shipping cap (RH) | 013193 |
| 2 | Cartridge shipping cap (RH) | 077251 |
| 3 | Cartridge receiver assembly, CR, LT (RH) | 024449 |
| 4 | Gasket, cartridge receiver | 000181 |
| 5 | Link, cartridge receiver | 001068 |
| 6 | Puncture lever, CR | 017915 |
| 7 | Spring pin, link to puncture lever | 004108 |
| 8 | Spring pin, puncture lever to puncture pin | 004109 |
| 9 | Puncture pin | 025305 |
| 10 | Retaining ring | 001903 |
| 11 | Rivet, link to cartridge receiver | 006286 |
| 12 | Ring pin guard, composite, LT-RP-10 | 428136 |
| 13 | Ring pin and chain assembly | 007095 |
| 14 | Rivet, RP to guard | 024156 |
| 15 | Carrying handle, CR | 017902 |
| 16 | Carrying handle rivet | 001265 |
| 17 | Carrying handle Spring | 002902 |
| 18 | Fill cap w/indicator, CR | 422808 |
| 19 | Gasket, fill cap | 006190 |
| 20 | Quad ring, fill cap | 006273 |
| 21 | Cap, plastic | 017633 |
| 22 | Stem, indicator | 027648 |
| 23 | Quad ring | 017630 |
| 24 | Retaining ring | 001239 |
| 25 | Hanger hook | 003651 |
| 26 | Hose hanger hook, CR | 077739 |
| 27 | O-ring #906 | 006263 |
| 28 | Inspection seal, visual | 015999 |
| 29 | Nameplate, operating, replacement PK/BC | A163826T0E |
| - | Nameplate, operating, replacement, A | A163826M06 |
| 30 | Nameplate, maintenance, replacement w/o UL | 416373 |
| 31 | Nozzle assembly, RL-A-10, RL-PK-10, RL-BC-10 | 054075 |
| 32 | Nozzle plunger | 056117 |
| 33 | O-ring, nozzle assembly | 003469 |
| 34 | Rivet, nozzle handle | 003621 |
| 35 | Handle, nozzle assembly, CR | 423461 |
| 36 | Spring, nozzle handle | 419422 |
| 37 | Nozzle tip, PK-10 | 030788 |
| - | Nozzle tip, A-10 | 031502 |
| - | Nozzle tip, BC-10 | 056116 |
| 38 | Hose seal (pkg of 30) | 415659 |
| 39 | Retaining ring (pkg of 50) | 415855 |
| 40 | Gas tube assembly | 434446 |
| - | Gasket kit (contains quad ring, flat gasket (2) and O-ring) | A16382NVG8 |
| - | Extinguisher weather cover (not shown) | 067636 |
| - | Hose inspection kit (seal & retaining ring) | 426687 |
20 lb Redline, Model 20-G Parts List
Match the diagram numbers to the corresponding rows in the parts tables below. A dash indicates an accessory or service item that is not individually numbered on the diagram. Some diagram numbers have more than one part option depending on model or configuration.
| Diagram No. | Description | Part No. |
|---|---|---|
| 1 | Cartridge w/cap, N2, LT-20 (RH) | 007032 |
| 2 | Cartridge shipping cap (RH) | 077251 |
| 3 | Cartridge receiver assembly, CR, LT (RH)Gasket, cartridge receiver | 024449 |
| 4 | Gasket, cartridge receiver | 000181 |
| 5 | Link, cartridge receiver | 001068 |
| 6 | Puncture lever, CR | 017915 |
| 7 | Spring pin, link to puncture lever | 004108 |
| 8 | Spring pin, puncture lever to puncture pin | 004109 |
| 9 | Puncture pin | 025305 |
| 10 | Retaining ring | 001903 |
| 11 | Rivet, link to cartridge receiver | 006286 |
| 12 | Ring pin cartridge guard, composite, LT-20 | 428137 |
| - | Ring pin cartridge guard, metal | 426450 |
| 13 | Ring pin and chain assembly | 007095 |
| 14 | Rivet, RP to guard | 024156 |
| 15 | Carrying handle, CR | 017902 |
| 16 | Carrying handle rivet | 001265 |
| 17 | Carrying handle Spring | 002902 |
| 18 | Fill cap w/indicator, CR | 422808 |
| 19 | Gasket, fill cap | 006190 |
| 20 | Quad ring, fill cap | 006273 |
| 21 | Cap, plastic | 017633 |
| 22 | Stem, indicator | 027648 |
| 23 | Quad ring | 017630 |
| 24 | Retaining ring | 001239 |
| 25 | Hanger hook | 003651 |
| 26 | Hose hanger hook, CR | 024459 |
| 27 | O-ring #908 | 006323 |
| 28 | Inspection seal, visual | 015999 |
| 29 | Nameplate, operating, replacement PK/BC | A163826T0E |
| - | Nameplate, operating, replacement, A | A163826M06 |
| 30 | Nameplate, maintenance, replacement w/o UL | 416374 |
| 31 | Nozzle assembly RL-20/30, without nozzle tip | 054066 |
| - | Nozzle assembly 20, HF-A, HF-PK, with nozzle tip | 015156 |
| - | Nozzle assembly RL-PK-20, RL-A-20, with nozzle tip | 030817 |
| 32 | Nozzle plunger assembly | 056117 |
| 33 | O-ring for nozzle assembly | 003469 |
| 34 | Rivet, nozzle handle | 003621 |
| 35 | Handle, nozzle assembly, CR | 423461 |
| - | Handle, nozzle assembly, HF | 426629 |
| 36 | Spring, nozzle handle | 419422 |
| 37 | Nozzle tip assembly, A & PK | 030790 |
| - | Nozzle tip assembly 20, HF-A, HF-PK | 025780 |
| - | Nozzle tip assembly, PLUS-FIFTY C | 030791 |
| 38 | Hose seal (pkg of 30) | 415660 |
| 39 | Retaining ring (pkg of 50) | 415856 |
| 40 | Gas tube assembly | 006317 |
| - | Extinguisher weather cover (not shown) | 067637 |
| - | Gasket kit (quad, flat gasket, hose O-ring) | 415877 |
| - | Hose inspection kit (seal, retainer clip) | 426688 |
30 lb Redline, Model 30-G Parts List
Match the diagram numbers to the corresponding rows in the parts tables below. A dash indicates an accessory or service item that is not individually numbered on the diagram. Some diagram numbers have more than one part option depending on model or configuration.
| Diagram No. | Description | Part No. |
|---|---|---|
| 1 | Cartridge w/cap, N2, LT-30 (RH) | 005373 |
| 2 | Cartridge shipping cap (RH) | 077251 |
| 3 | Cartridge receiver assembly, CR, LT (RH) | 024449 |
| 4 | Gasket, cartridge receiver | 000181 |
| 5 | Link, cartridge receiver | 001068 |
| 6 | Puncture lever, CR | 017915 |
| 7 | Spring pin, link to puncture lever | 004108 |
| 8 | Spring pin, puncture lever to puncture pin | 004109 |
| 9 | Puncture pin | 025305 |
| 10 | Retaining ring | 001903 |
| 11 | Rivet, link to cartridge receiver | 006286 |
| 12 | Ring pin cartridge guard, composite, LT-30 | 435256 |
| 13 | Ring pin and chain assembly | 007095 |
| 14 | Rivet, RP to guard | 024156 |
| 15 | Carrying handle, CR | 017902 |
| 16 | Carrying handle rivet | 001265 |
| 17 | Carrying handle Spring | 002902 |
| 18 | Fill cap w/indicator, CR | 422808 |
| 19 | Gasket, fill cap | 006190 |
| 20 | Quad ring, fill cap | 006273 |
| 21 | Cap, plastic | 017633 |
| 22 | Stem, indicator | 027648 |
| 23 | Quad ring | 017630 |
| 24 | Retaining ring | 001239 |
| 25 | Hanger hook | 003651 |
| 26 | Hose hanger hook, CR | 024451 |
| 27 | O-ring #910 | 006324 |
| 28 | Inspection seal, visual | 015999 |
| 29 | Nameplate, operating, replacement PK/BC | A163826T0E |
| - | Nameplate, operating, replacement, A | A163826M06 |
| 30 | Nameplate, maintenance, replacement w/o UL | 416375 |
| 31 | Nozzle assembly, with nozzle tip, RL-BC-30, RL-A-30, RL-PK-30 | 030818 |
| - | Nozzle assembly RL-20/30, without nozzle tip | 054066 |
| - | Nozzle assembly 30, with nozzle tip, HF-A, HF-PK | 015159 |
| - | Nozzle assembly, MET-L-X/LITH-X | 054782 |
| 32 | Nozzle plunger | 056117 |
| 33 | O-ring for nozzle assembly | 003469 |
| 34 | Rivet, nozzle handle | 003621 |
| 35 | Handle, nozzle assembly | 423461 |
| - | Handle, nozzle assembly, HF | 426629 |
| 36 | Spring, nozzle handle | 419422 |
| 37 | Nozzle tip, A, PK, PLUS-FIFTY C | 030791 |
| - | Nozzle tip, MET-L-X, LITH-X | 025799 |
| 38 | Hose seal (pkg of 30) | 415661 |
| 39 | Retaining ring (pkg of 50) | 415857 |
| 40 | Gas tube assembly | 434620 |
| - | Extinguisher weather cover (not shown) | 067638 |
| - | Gasket kit (quad ring, flat gasket (2), hose O-ring) | 415878 |
| - | Hose inspection kit (seal & retainer clip) | 426689 |
Important: Confirm the complete extinguisher model, agent type, component description, diagram number, and part number before ordering. Some parts differ between 10 lb, 20 lb, and 30 lb RED LINE models and between standard, high-flow, and special-agent configurations. Part numbers shown without a link did not include a Fire Safety Supply product URL in the supplied parts spreadsheet.
Covered RED LINE Models
- 10-G — 10 lb RED LINE cartridge-operated extinguisher
- 20-G — 20 lb RED LINE cartridge-operated extinguisher
- 30-G — 30 lb RED LINE cartridge-operated extinguisher
