Sentry Carbon Dioxide Fire Extinguisher Parts

View the parts for Sentry Dry Chemical Extinguishers. Select the model you would like to see by clicking one of the following links, or scroll through the page to see all of the parts images.

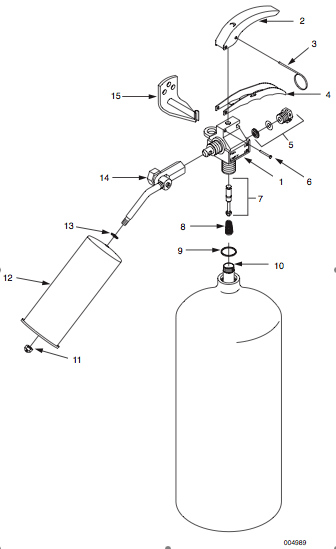

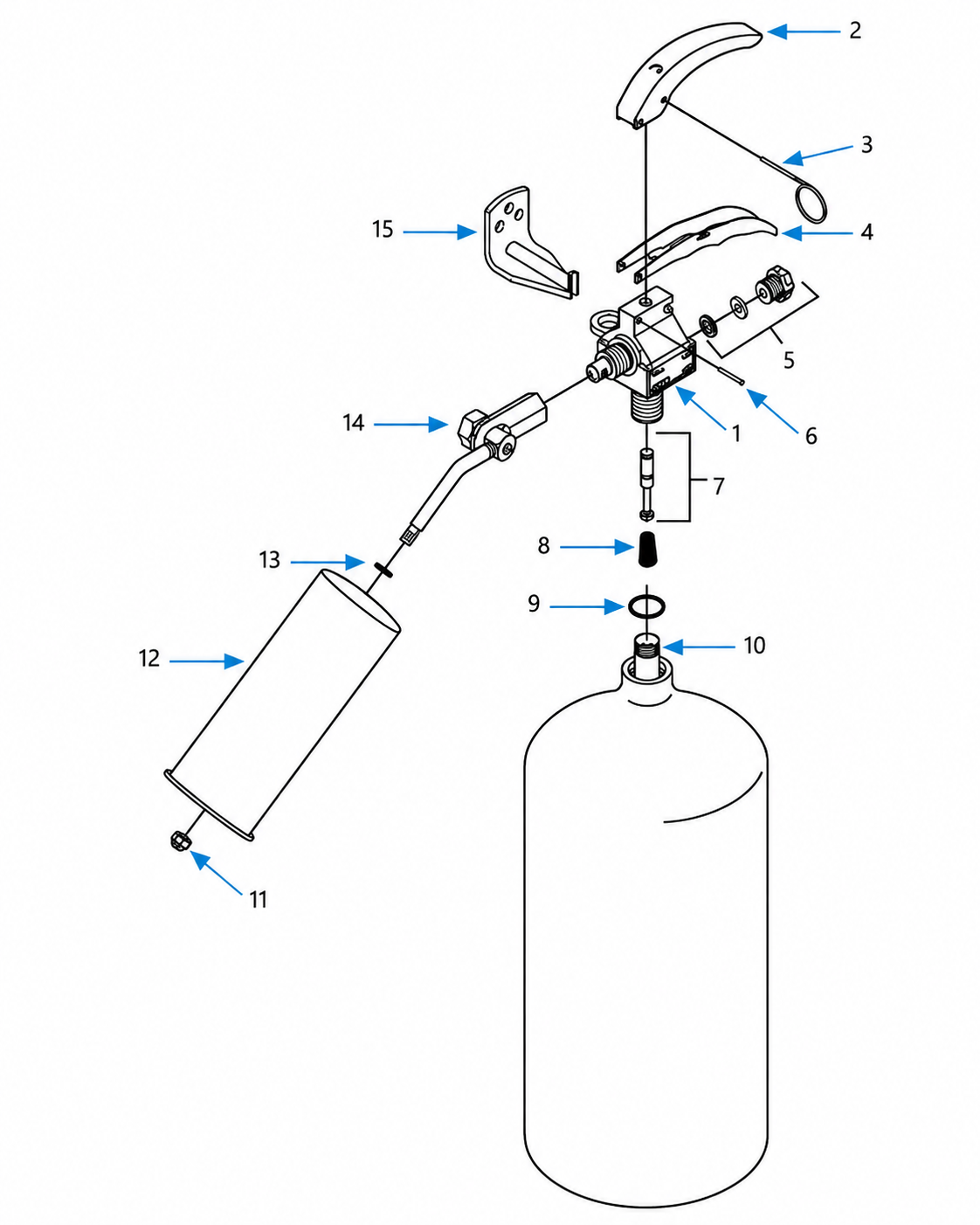

MODELS CD05A-1 (Aluminum), CD05-1 (Steel)
SentryCarbonDioxideFireExtinguisherPartsCD05A-1CD05-1
Fig
No
 Description Part No
— Valve Assmbly, CD05A-1 431000
— Valve Assembly, CD05-1 431550
1 Valve Body, CD05-1 429239
2 Lever, Black 429163
2 Lever, Chrome 432775
3 Ring Pin 429172
4 Handle, Black 429160
4 Handle, Chrome 432776
5 Safety Plug Assembly w/ Disc & Washer 429515
6 Handle Rivet 429165
7 Plunger Assembly 429154
8 Spring 415565
9 O-Ring. Valve to Cylinder 429170
10 Pick-Up Tube 79475
11 Nozzle 429185
12 Horn 429184
13 Nylon Washer 429183
14 Swivel Assembly 429173
15 Hanger Hook 79356
— Nameplate, Replacement webpage

MODELS SY-0571 (STEEL), SY-0572 (ALUMINUM)

SentryCarbonDioxideFireExtinguisherPartsSY-0571SY-0572
Fig
No
 Description Part No
1 Valve Assmebly, SY-0572 79470
1 Valve Assembly, SY-0571 79354
2 Plunger Assembly 79806
3 Safety Plug Assembly with Disc & Washer 79786
4 Ring Pin 16235
5 Discharge Tube Assembly 73861
6 Discharge Horn 79350
7 Tube, Siphon 79475
8 O-Ring 79805
9 Hanger Hook 79356
10 Visual Seal (Not Shown) 25940
— Nameplate, Replacement webpage

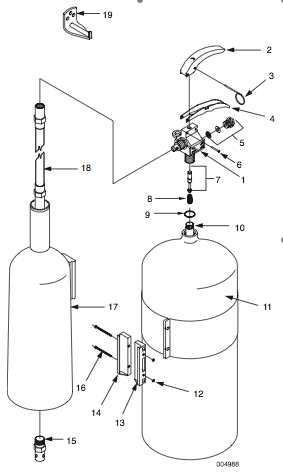

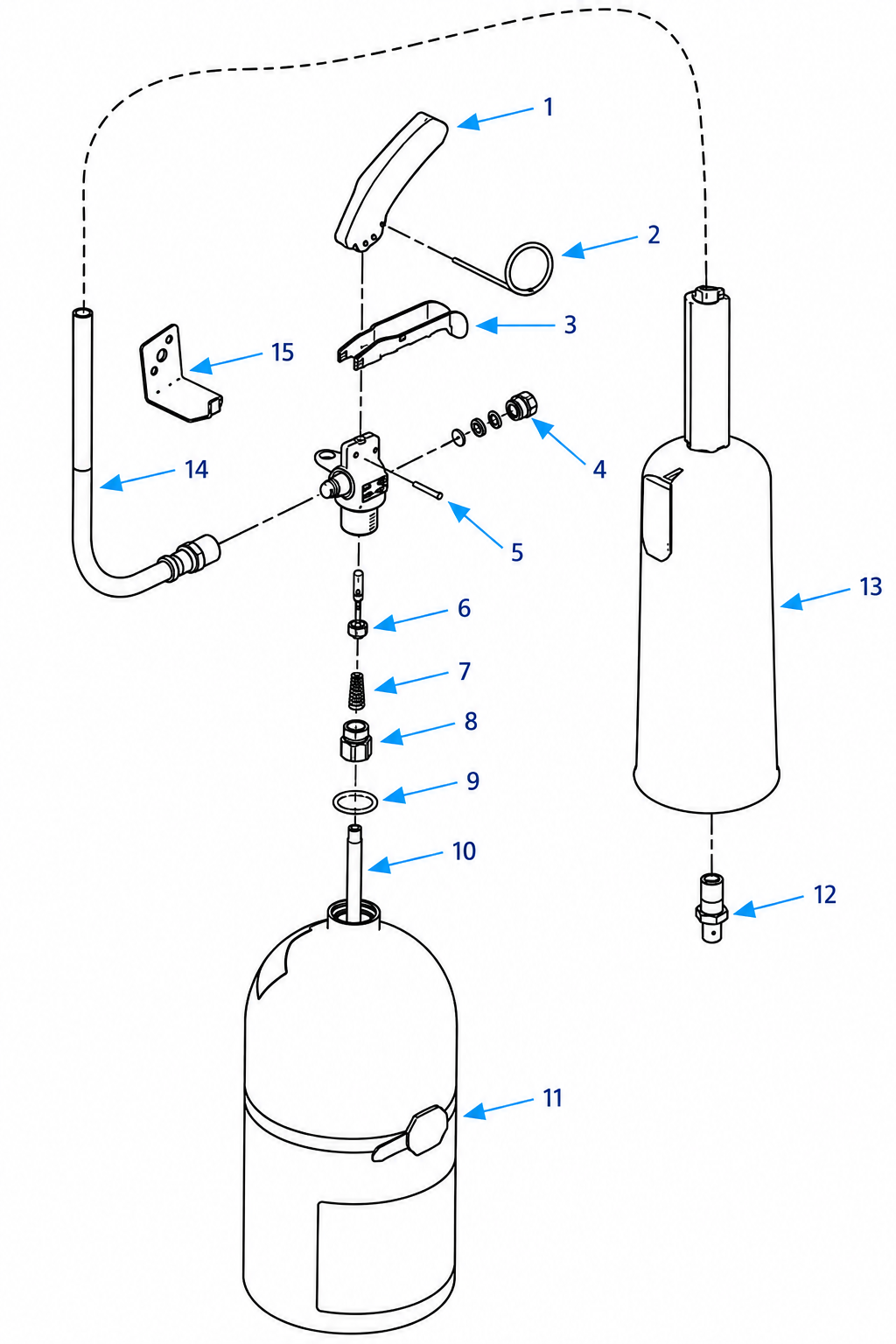

MODELS CD10A-1, CD15A-1, CD20A-1 (ALUMINUM)MODELS CD10-1, CD15-1, CD20-1 (STEEL)
SentryCarbonDioxideFireExtinguisherCD10A-1CD15A-1CC20A-1CD10-1CD15-1CD20-1
Fig
No
 Description Part No
— Valve Assembly, Aluminum Models 431000
— Valve Assembly, Steel Models 431550
1 Valve Body, Aluminum Models 429151
1 Valve Body, Steel Models 429239
2 Lever, Black 429163
2 Level, Chrome 432775
3 Ring Pin 429172
4 Handle, Black 429160
4 Handle, Chrome 432775
5 Safety Plug w/ Disc & Washer 429515
6 Rivet 429165
7 Plunger Assembly 429154
8 Spring 415565
9 O-Ring, Valve to Cylinder, Aluminum Models Only 429170
10 Pick-Up Tube, CD10A-1 431551
10 Pick-Up Tube, CD10-1 431552
10 Pick-Up Tube 15-20lb Models 79478
11 Band, 10-15 lb Models 429348
11 Band, 20 lb Models 429349
12 Hex Nut (2 Required) 429202
13 Right Clamp 429199
14 Left Clamp 429200
15 Nozzle Orifice, 10lb Models 429198
15 Nozzle Orifice, 15lb Models 429210
15 Nozzle Orifice, 20lb Models 431621
16 Screw (2 Required) 429201
17 Horn 429197
18 Hose 429196
19 Hanger Hook, 10-15 lb Models 79357
19 Hanger Hook, 20lb Models 79358
— Nameplate, Replacement w/o UL webpage

MODELS SY-1071, SY-1571, SY-2071 (ALUMINUM)
MODELS SY-1072, SY-1572, SY-2072 (STEEL)

SentryCarbonDioxideFireExtinguisherSY-1071SY-1571SY-2071SY-1072SY-1572SY-2072
Fig
No
 Description Part No
1 Valve Assembly, Aluminum Models 79438
1 Valve Assembly, Steel Models 79355
2 Plunger Assembly 79806
3 Safety Plug w/ Disc & Washer 79786
4 Ring Pin 16235
5 Elbow 79352
6 Tube, Siphon SY-1072 79476
6 Tube, Siphon SY-1071 79477
6 Tube, Siphon 15-20 lb Models 79478
7 O-Ring, Valve to Cylinder, Aluminum Models Only 79805
8 Hanger Hook, 10-15 lb Models 79357
8 Hanger Hook, 20 lb Models 79358
9 Horn, 10-15 lb Models 77892
9 Horn, 20 lb Models 77893
10 Hose Assembly 77628
11 Nozzle Orfice, 10 lb Models 79473
11 Nozzle Orfice 15-20 lb Models 79474
12 Clip, Horn 77894
13 Band, SY-1072/1572 79776
13 Band, SY-2071 79777
13 Band, SY-2072 79778
14 Visual Seal (Not Shown) 25940
15 Nozzle Retainer 79783
16 Hardware Kit 79471
— Nameplate, Replacement w/o UL webpage
