Water Fire Extinguisher Parts

ANSUL 2.5 Gallon Water Extinguisher W02-1 Parts

Find replacement parts for the ANSUL 2.5 Gallon Water Extinguisher, Model W02-1. Search by diagram number, description, model, or part number. Product links are provided where available. For assistance confirming compatibility or availability, call Fire Safety Supply at 1-800-498-3473.

Browse W02-1 Water Extinguisher Parts
W02-1 Parts List Parts Diagram
No matching W02-1 water extinguisher parts were found.

2.5 Gallon Water Extinguisher — Model W02-1

This parts reference covers the ANSUL 2.5 gallon water extinguisher, Model W02-1. Use the exploded diagram number, component description, and part number to identify the correct replacement part before ordering.

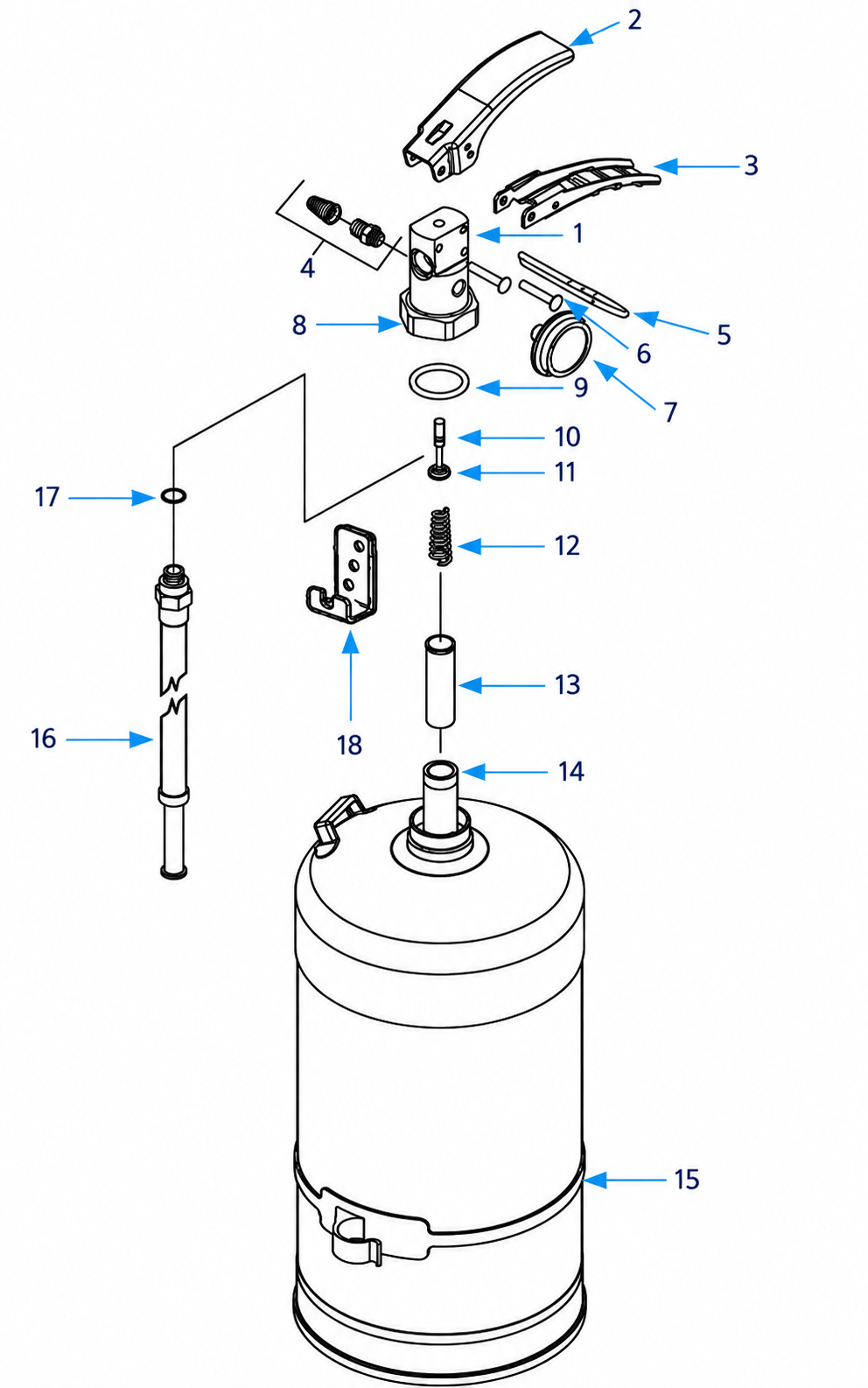

ANSUL W02-1 2.5 gallon water fire extinguisher exploded parts diagram

Match the diagram numbers to the corresponding rows in the parts table below. Items marked with a dash are not shown with an individual diagram number.

ANSUL W02-1 Water Extinguisher Parts List

Diagram No. Description Part No.
1 Valve body assembly 430792
2 Lever 428428
3 Handle 428429
4 Schrader valve, 0-200 psi 429542
5 Ring pin 429290
6 Rivet 430250
7 Gauge, 100 psi 429536
8 Collar nut 430274
9 Collar O-ring #215 56909
10 Valve stem O-ring #6 429159
11 Valve stem 429099
12 Spring 430004
13 Fill tube 429541
14 Pick-up tube assembly 437261
15 Hose retainer 427995
16 Hose and nozzle assembly 429543
17 Hose O-ring #14 429544
18 Wall hanger 451409
- Heavy duty bracket (not shown) 30937
- Visual inspection seal (not shown) 25940
Important: Confirm the extinguisher model, component description, diagram number, and part number before ordering. Product links are included where they were provided in the source parts sheet. For unlinked part numbers, contact Fire Safety Supply to confirm current availability or supersession.

Reference Information

  • Model: W02-1
  • Extinguisher Type: Water
  • Capacity: 2.5 gallon
  • Parts Shown: Valve, lever, handle, gauge, O-rings, tubes, hose components, hanger, bracket, and inspection seal
