Wheel Assembly Parts
ANSUL Wheeled Extinguisher Wheel Assembly Parts
Find replacement ANSUL wheeled fire extinguisher wheel assembly parts for Models 150-C, 150-D, 350-C, and 350-D, including wheels, hub caps, washers, spring pins, fittings, and related components. Product numbers with available Fire Safety Supply listings link directly to the corresponding product page. For assistance confirming compatibility or availability, call Fire Safety Supply at 1-800-498-3473.
Match the diagram numbers shown above to the corresponding parts in the table below.

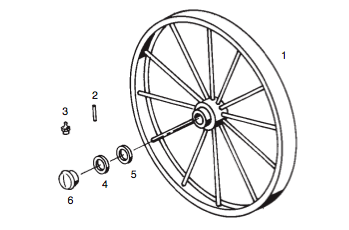

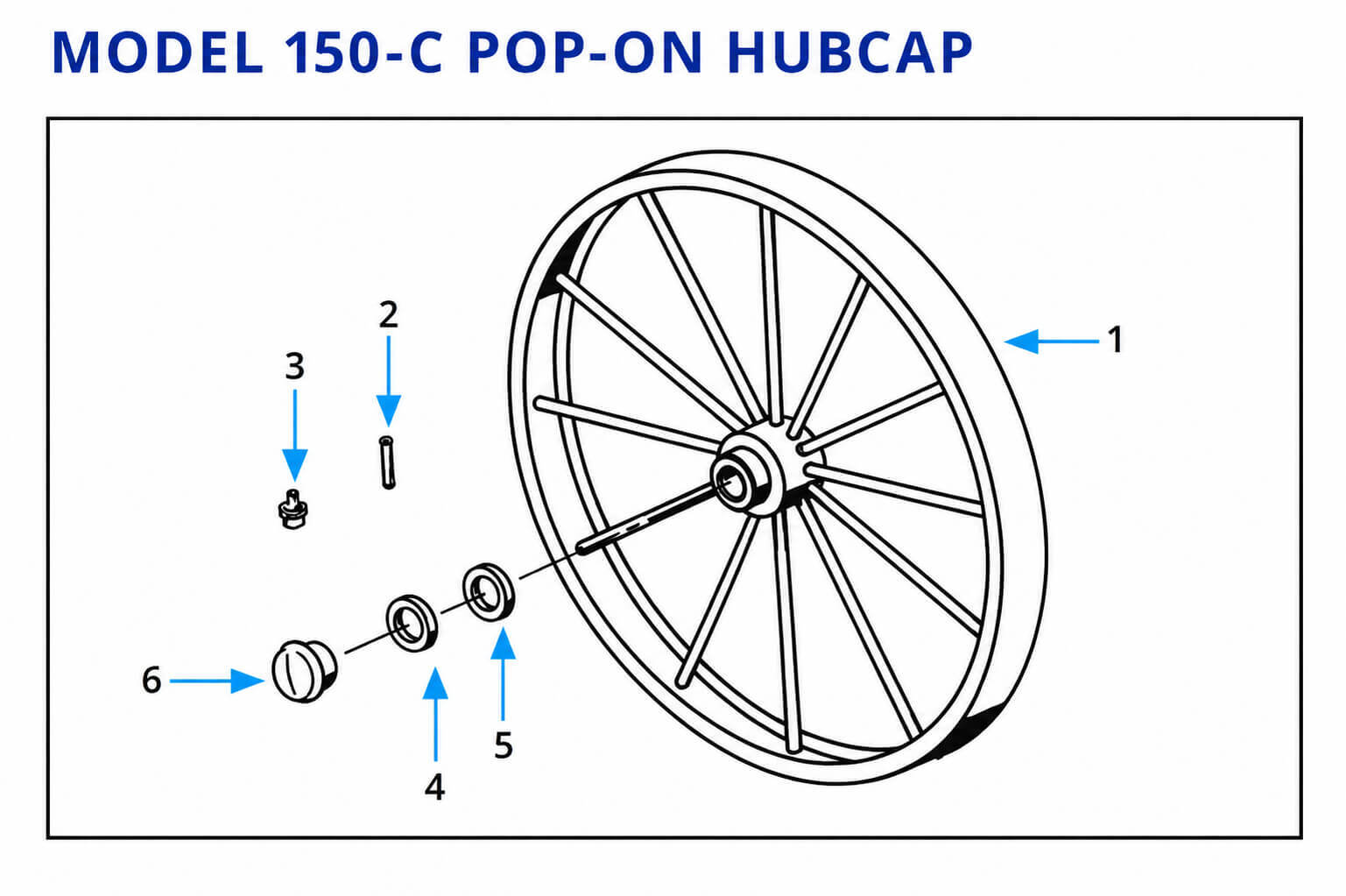

Model 150-C Pop-On Hub Cap Parts
| Diagram No. | Description | Part No. |
|---|---|---|
| 1 | Wheel, 2 1/2in. Steel | 029508 |
| - | Wheel, wide, 6in. steel | 031015 |
| - | Wheel, rubber-coated | 031012 |
| 2 | Spring pin | 008560 |
| 3 | Alemite fitting | 001033 |
| 4 | Washer (3.3mm) | 067684 |
| 5 | Washer (1.5mm) | N/A |
| 6 | Hub Cap | 056739 |
Match the diagram numbers shown above to the corresponding parts in the table below.

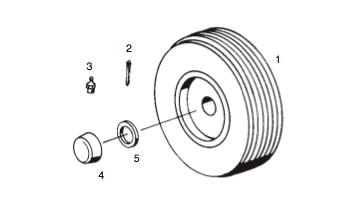

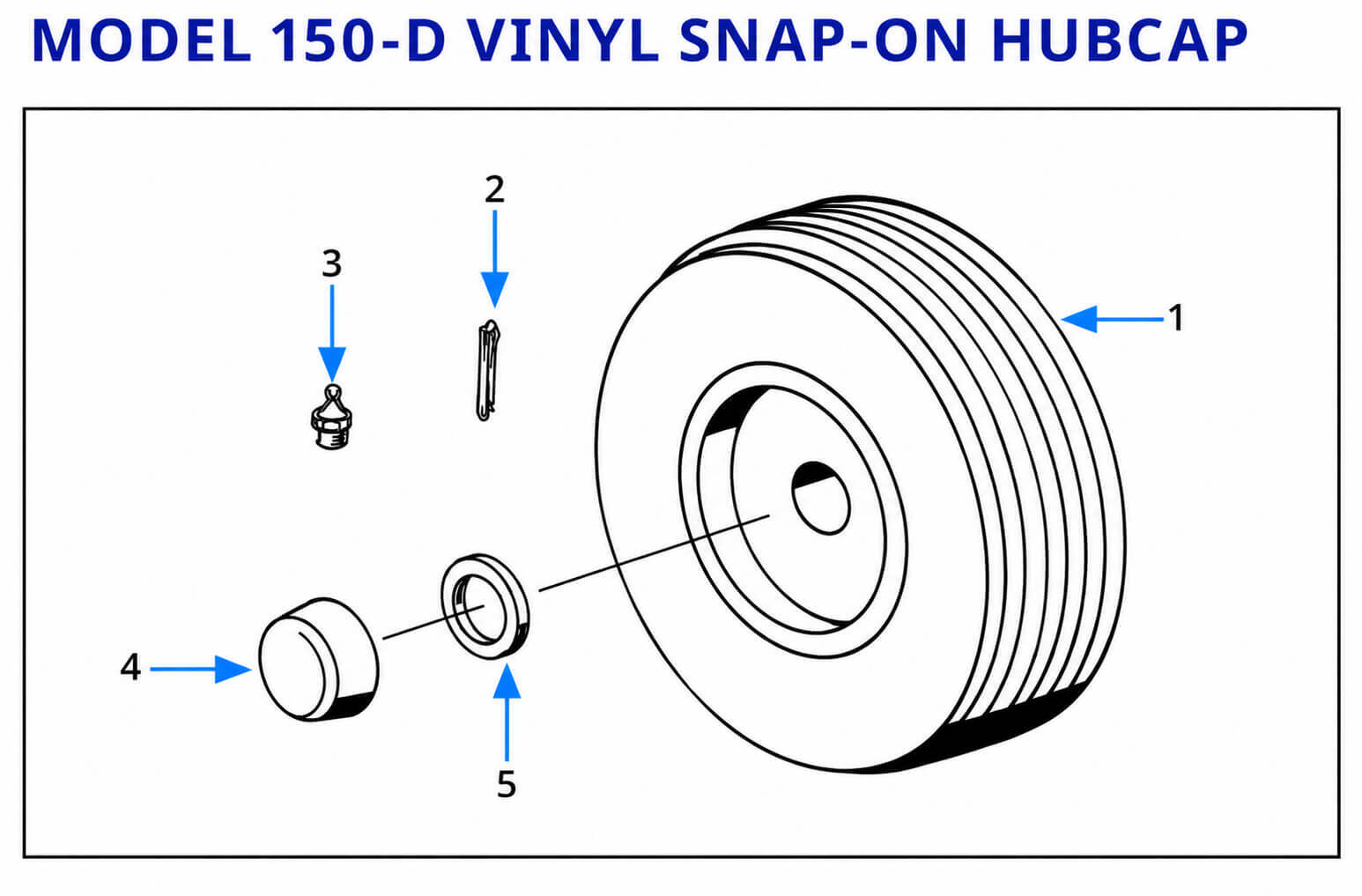

Model 150-D Vinyl Snap-On Hub Cap Parts
| Diagram No. | Description | Part No. |
|---|---|---|
| 1 | Wheel, steel | 053870 |
| 2 | Roll pin | 069855 |
| 3 | Alemite Fitting | 001033 |
| 4 | Washer | 053541 |
| 5 | Hub Cap | 053867 |
Match the diagram numbers shown above to the corresponding parts in the table below.

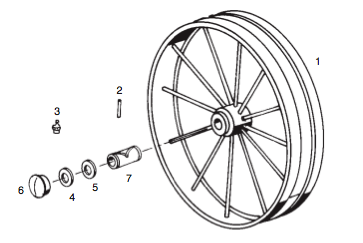

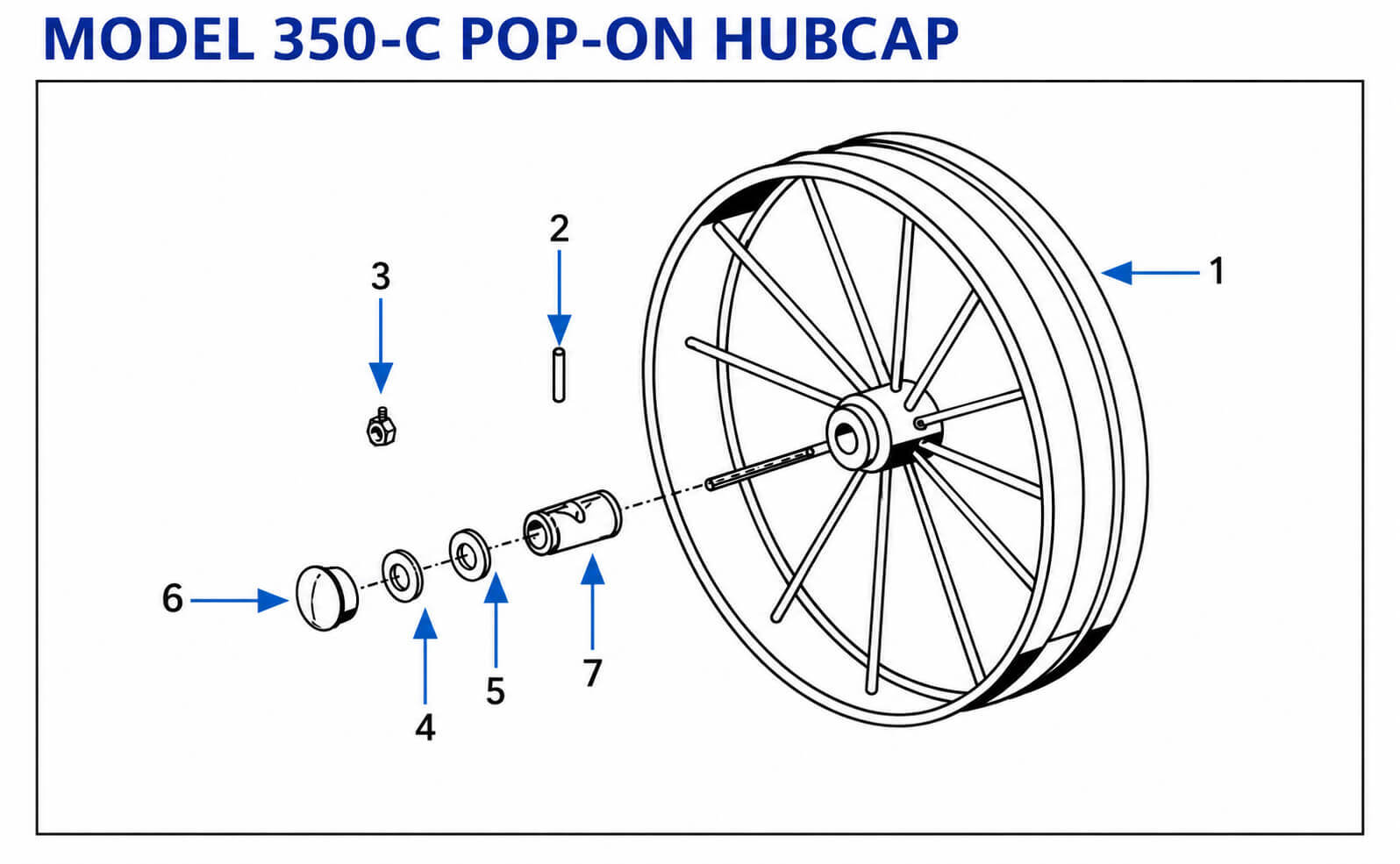

Model 350-C Pop-On Hub Cap Parts
| Diagram No. | Description | Part No. |
|---|---|---|
| 1 | Wheel, wide 6 in Steel | 025908 |
| 2 | Spring Pin | 008560 |
| 3 | Alemit Fitting | 001033 |
| 4 | Washer (3.3m) | 067684 |
| 5 | Washer (1.5mm) | N/A |
| 6 | Bolt | N/A |
| 7 | Hub Cap | 056739 |
Match the diagram numbers shown above to the corresponding parts in the table below.

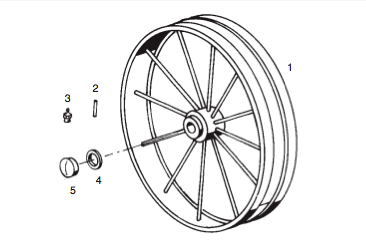

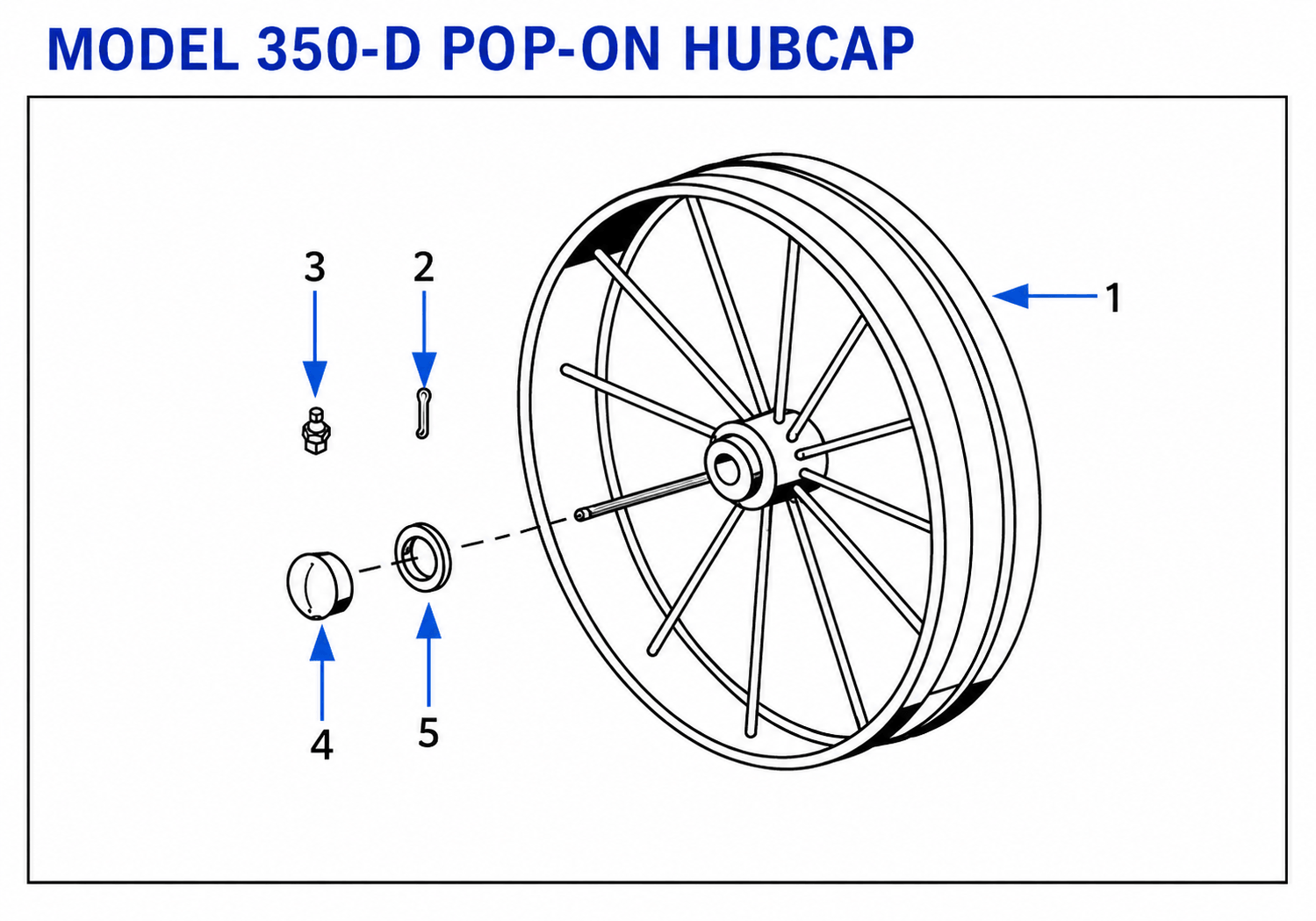

Model 350-D Pop-On Hub Cap Parts
| Diagram No. | Description | Part No. |
|---|---|---|
| 1 | Wheel, wide, 6in steel | 031015 |
| - | Wheel, rubber-coated | 031012 |
| 2 | Spring Pin | 008560 |
| 3 | Alemite Fitting | 001033 |
| 4 | Washer (3.3mm) | 067684 |
| 5 | Hub Cap | 056739 |
Important: Confirm the extinguisher model, wheel configuration, diagram number, description, and part number before ordering. Some wheel, hub cap, washer, and mounting components differ between 150-C, 150-D, 350-C, and 350-D configurations.
