Wheeled Carbon Dioxide Extinguisher Parts

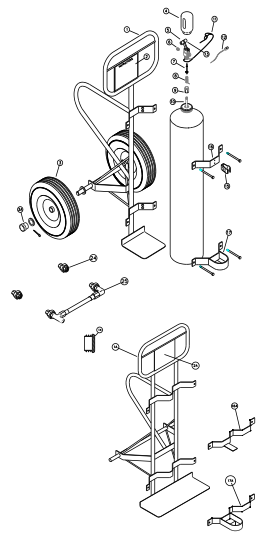

View Graphic

Item #	Part #	Description
1	09891	Carriage Assembly without Wheels - 000
2	09903	Carriage Assembly without Wheels - 334
3	17675	Carriage Assembly with Saddles - 000
4	09618	Pictogram - 000
5	09787	Pictogram - 334
6	07751	Wheel Assembly - 16” with Hub Cap, Washers and Cotter Pin - Semi-Pneumatic
7	04945	Hub Cap
8	12470	Red Cylinder Cap
9	06373	Valve Lever (“T” Handle - Complete)
10	04000	Safety Disc Assembly
11	09897	Valve Stem Assembly
12	00501	Spring
13	09627	Retainer
14	09623	Dowtube
15	01387	Lock Wire Seal (Yellow)
16	09895	Valve Assembly Complete with Downtube
17	09892	Horn Clip with Mounting Hardware
18	09893	Saddles with Hardware - 000
19	09904	Saddles with Hardware - 334
20	09545	Hose Assembly - 000,334 (40 ft.)
21	09366	Shut-off Valve Assembly
22	09899	Valve Stem Assembly for Shut-off Valve
23	09901	Spring for Shut-off Valve
24	09896	Handle with Rubber Cover
25	09369	Horn & Nozzle
26	08169	Union (Manifold) - 334
27	09905	Manifold (with Unions) - 334
28	13958	Bumper, Rubber
29*	10093	Cylinder Replacement CO2 - 50 lb.
30	09364	Horn and Valve Assembly
31	00532	Chain (Nylon) for Ring Pin
32	00160	Ring Pin Stainless Steel

Note: Parts are based on the provided Amerex workbook. 30 product links are included where hyperlinks were present in the Excel file.

Click any image to view the full-size version in a new tab.
