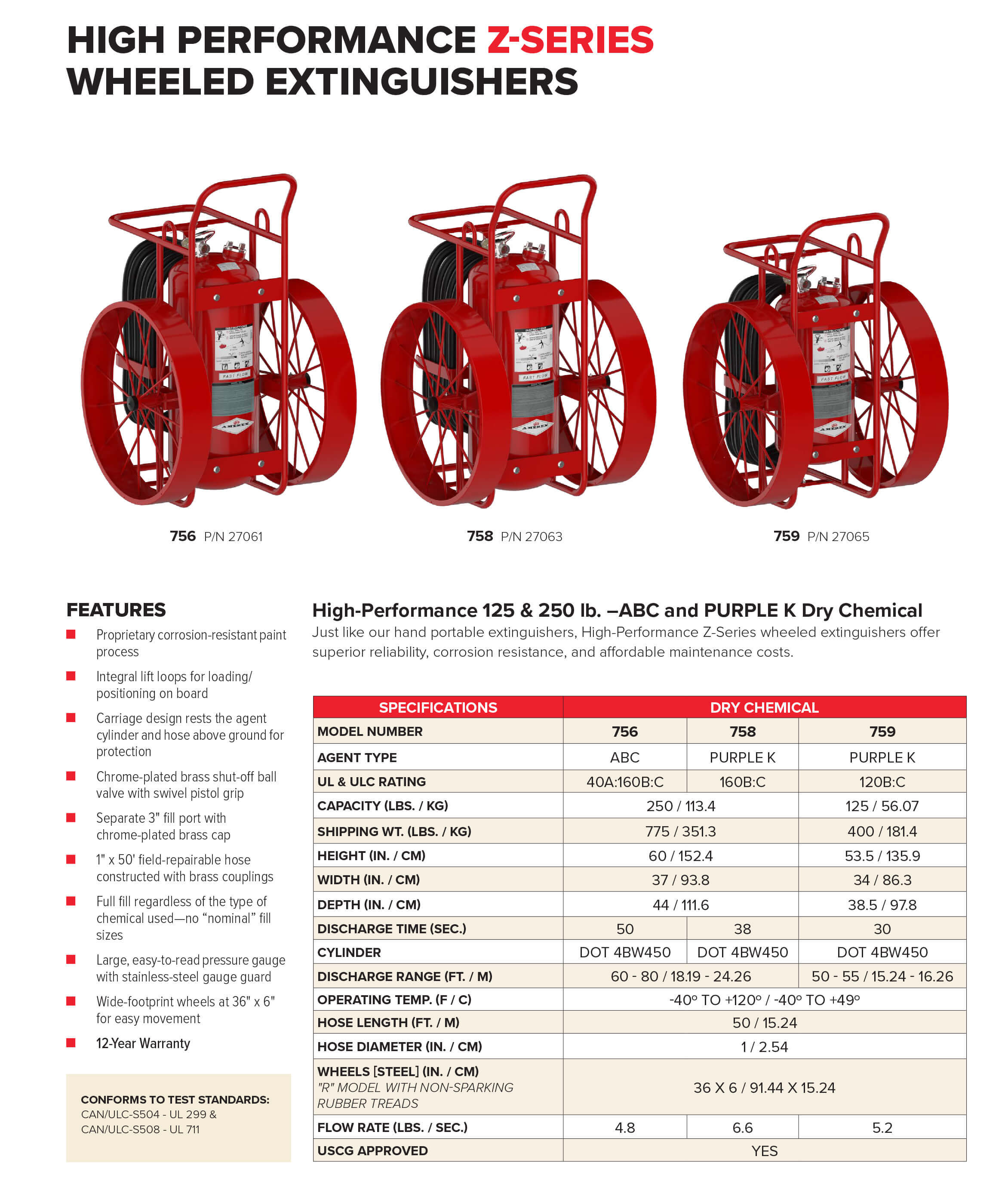

Wheeled High-Performance Z-Series Extinguishers

Compare specifications for Amerex wheeled high-performance Z-Series dry chemical extinguishers, including ABC and Purple K models.

Amerex Model

ABC

250 lb. | 40A:160B:C

Amerex Model

PURPLE K

106B:C

Amerex Model

PURPLE K

125 lb. | 120B:C

Specifications

Specification	756	758	759
AGENT TYPE	ABC	PURPLE K	PURPLE K
UL & ULC RATING	40A:160B:C	106B:C	120B:C
CAPACITY (LBS.)	250	—	125
SHIPPING WT. (LBS.)	775	—	400
HEIGHT (IN.)	60	—	53.5
WIDTH (IN.)	37	—	34
DEPTH (IN.)	44	—	38.5
DISCHARGE TIME (SEC.)	50	38	30
CYLINDER	DOT 4BW450	DOT 4BW450	DOT 4BW450
DISCHARGE RANGE (FT.)	60-80	—	50-55
OPERATING TEMP. (F.)	-40º TO +120º	—	—
HOSE LENGTH (FT.)	50	—	—
HOSE DIAMETER (IN.)	1	—	—
WHEELS (STEEL) (IN.) "R" MODEL WITH NON-SPARKING RUBBER TREADS	36 X 9	—	—
FLOW RATE (LBS. / SEC.)	4.8	6.6	5.2
USCG APPROVED	Yes	—	—

Note: Specifications are based on the provided Amerex workbook. Product links are included where hyperlinks were present in the Excel file.

Click any image to view the full-size version in a new tab.
