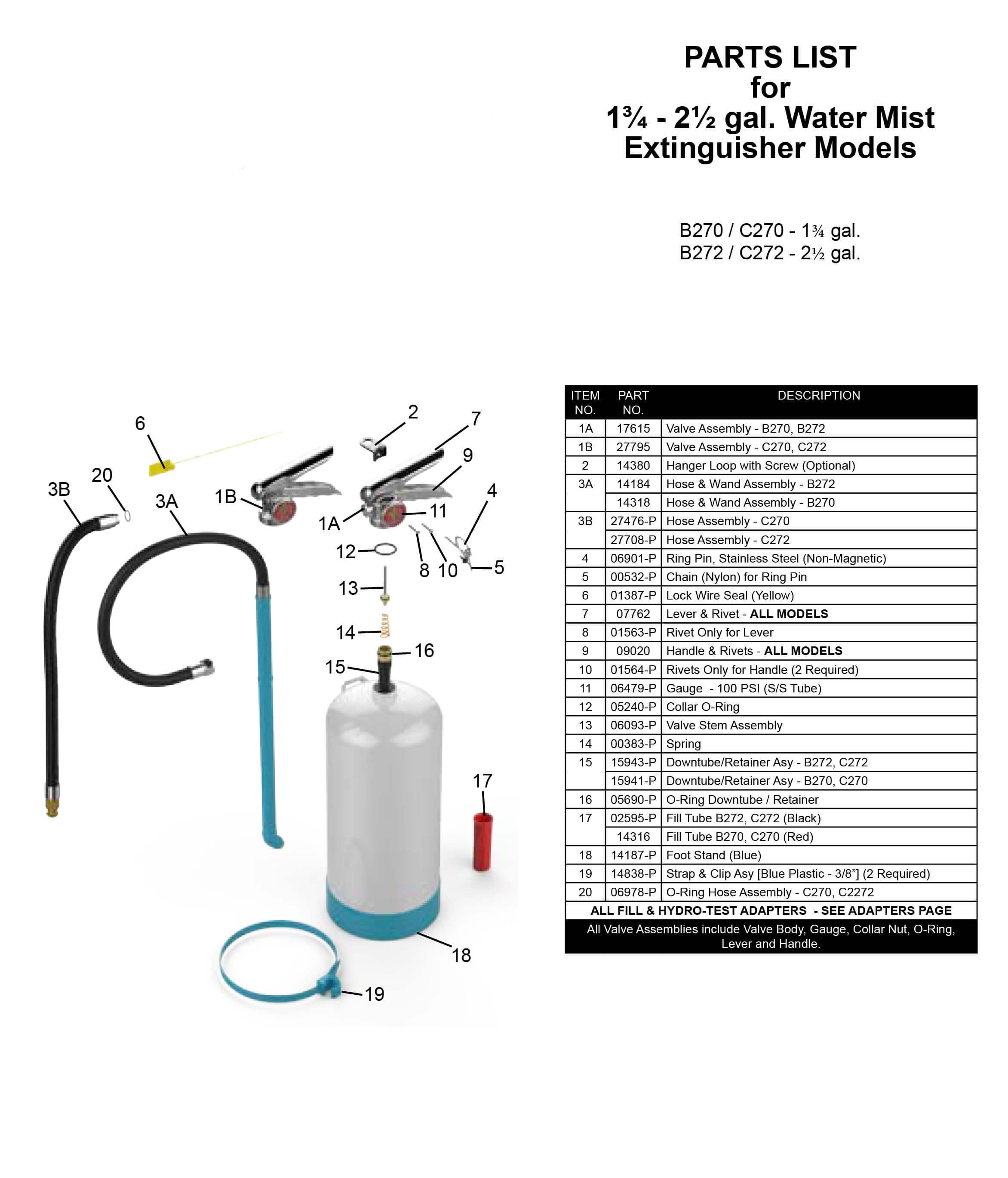

1¾-2½ Gallon Water Mist Extinguisher Models
270, 272, B270NM (Non-magnetic), B272NM (Non-magnetic)

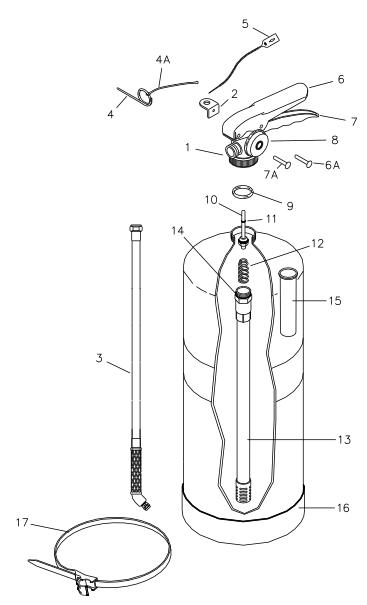

| Fig No | Description | Part No |
| 1 | Valve Assembly – All Models | 17615 |
| 2 | Hanger Loop w/Screw (Optional) | 14380 |
| 3 | Hose & Wand Assembly – All 272 Models | 14184 |
| Hose & Wand Assembly – All 270 Models | 14318 | |
| 4 | Ring Pin, SS (Non-Magnetic) | 06901 |
| 4A | Chair (Nylon) for Ring Pin | 00532 |
| 5 | Lock Wire Seal (Yellow) | 01387 |
| 6 | Lever & Rivet – All Models | 07762 |
| 6A | Rivet Only for Lever | 01563 |
| 7 | Handle & Rivets – All Models | 09020 |
| 7A | Rivets Only for Handle (2 Required) | 01564 |
| 8 | Gauge – 100 | 06479 |
| 9 | Collar O-Ring | 05240 |
| 10 | Valve Stem Assembly | 06093 |
| 11 | Valve Stem O-Ring | 05243 |
| 12 | Spring | 00383 |
| 13 | Downtube/Retainer Assembly – All 272 Models | 15943 |
| Downtube/Retainer Assembly – All 270 Models | 15941 | |
| 14 | O-Ring Downtube/Retainer | 05690 |
| 15 | Fill Tube – All 272 Models | 02595 |
| Fill Tube – All 270 Models | 14316 | |
| 16 | Foot Stand (Blue) | 14187 |
| 17 | Strap & Clip Assembly (Blue Plastic – 3/8″) (2 Required) | 14838 |
For bracket information, view the Amerex Bracket page.
For fill and hydrotest adapters, view the Amerex Adapter page.
All valve assemblies include valve body, valve stem assembly, spring, retainer, lever and handle.
